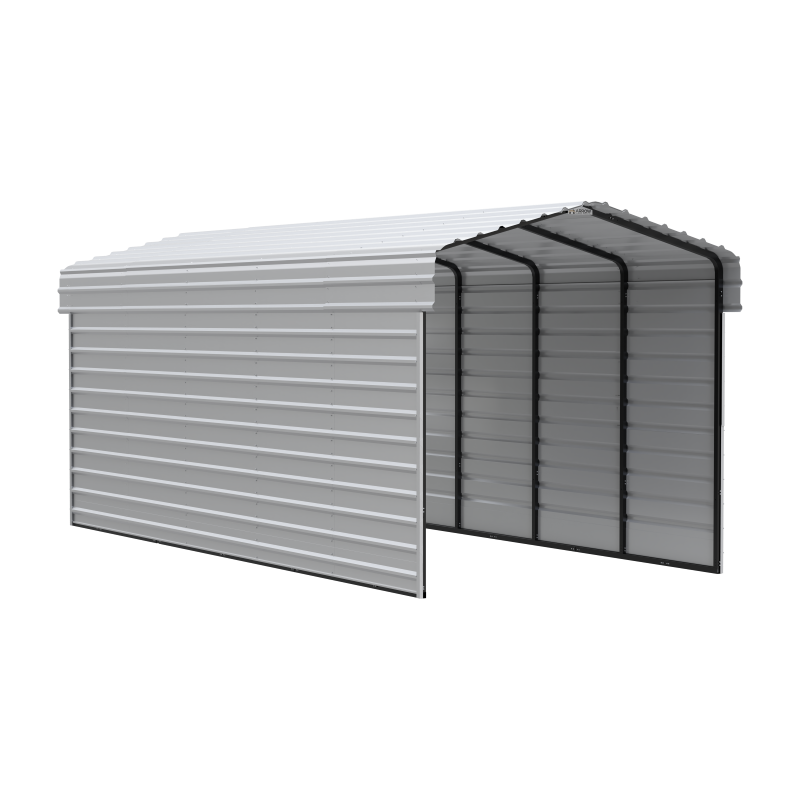

Arrow 2-sided 10x24x9 Enclosure Galvanized Steel Carport Kit- Eggshell (CPH102409ECL2)

Arrow 2-sided 10x24x9  Enclosure Galvanized Steel Carport Kit- Eggshell (CPH102409ECL2)

The Arrow Carport with Enclosure stands as a resilient outdoor defense system, crafted to shield your possessions from nature's elements. Engineered to endure tough weather conditions, this enduring all-steel construction showcases a snow-load rating and incorporates a robust 2-inch square tube powder-coated steel frame for unparalleled stability. Setting it up is effortless with its distinctive slip-fit frame connection and self-drilling screws, promising a swift assembly process.

Features:

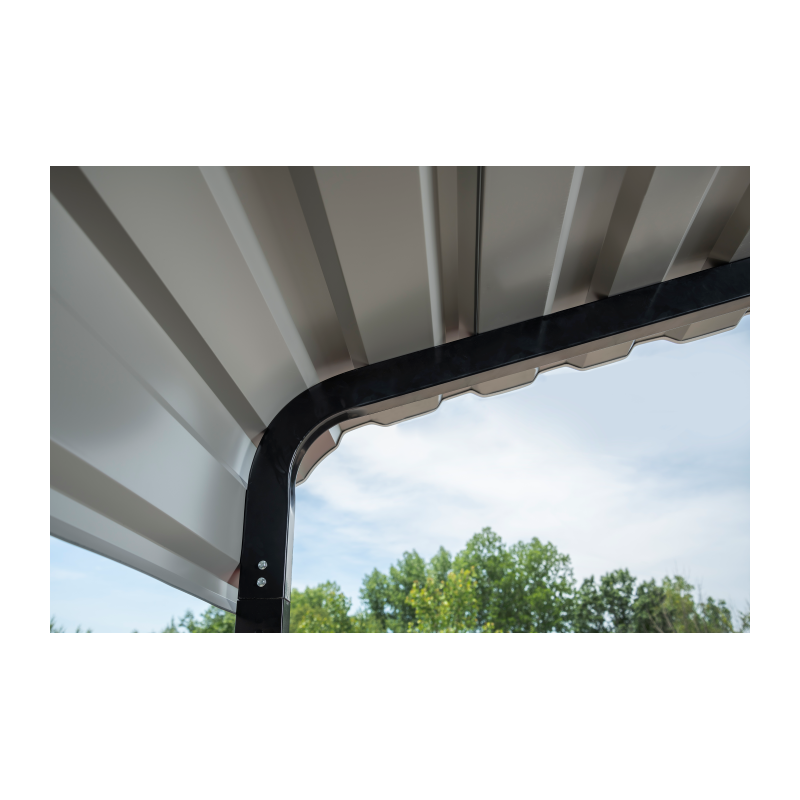

• Featuring a 2 in. square tube powder-coated steel frame
• Built for easier, faster assembly: its unique design features a slip-fit frame connection with pilot holes and self-drilling screws
• Rounded roof eaves and 12 in. overhang at the roof gables offer additional protection from the elements

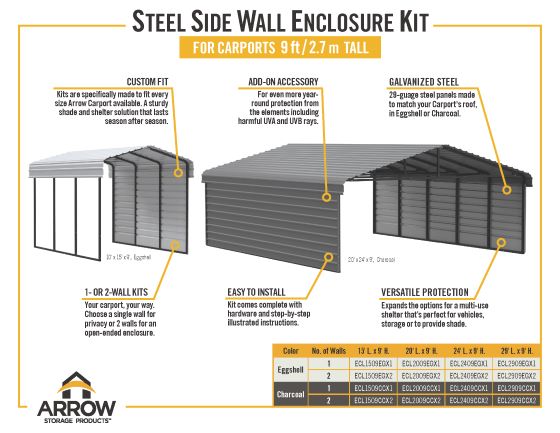

• A heavy-duty 29-gauge galvanized steel sidewall matches the roof and can be attached to the Carport
• Roof and sidewall comes in an attractive eggshell finish
• Manufactured in the United States using globally-sourced materials
• Snow load is given as reference only and assume a securely anchored frame according to local building codes and ordinances. These have been calculated using combined snow load provisions in accordance with ASCE 7-05.
• Comes with a 10 year limited warranty

Specifications:

Color: Eggshell
Frame Color: Black
Material: Steel
Assembly Required: Yes
Water Resistant: Yes
Building Shape: Peak
Shape of the Tube: Square
Wall Height: 108.75

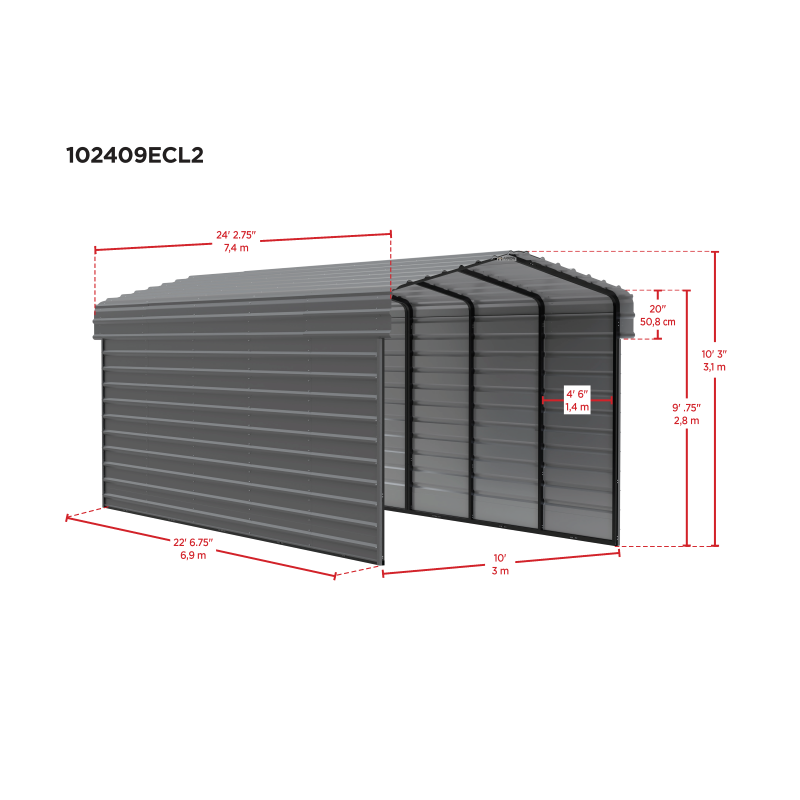

Assembled Exterior Dimensions: 120"W x 290.75"D x 123.15"H
Foundation Dimensions: 300"L x 132"W
Total Storage Volume: 2244 cu. ft
Total Storage Area: 234 sq. ft.
Wind Load Rating: 65 mph
Snow Load Rating: 35 psf
Door / Entrance Width Bottom: 116 in.
Door / Entrance Height: 106.75 in.
Shipping Dimensions: 30.5"W x 71.06"L x 33.56"H
Shipping Weight: 966.15 lbs
Number of Boxes: 14
