Arrow 1-Sided 12x24x9 Enclosure Galvanized Steel Carport Kit- Eggshell (CPH122409ECL1)

Arrow 1-Sided 12x24x9 Enclosure Galvanized Steel Carport Kit- Eggshell (CPH122409ECL1)

The Arrow Carport with Enclosure is a robust, adaptable, and practical all-weather shelter solution designed to withstand harsh weather conditions. Its sturdy 2-inch square tube powder-coated steel frame ensures stability, while its unique design features a slip-fit frame connection with pilot holes and self-drilling screws for faster assembly. The rounded roof eaves and 12-inch overhang at the roof gables provide additional protection from the elements, and the heavy-duty 29-gauge galvanized steel sidewall can be attached for extra coverage. With an attractive eggshell finish and a 10-year limited warranty, this carport is a reliable choice for any outdoor space.

Features:

• Featuring a 2 in. square tube powder-coated steel frame
• Built for easier, faster assembly: its unique design features a slip-fit frame connection with pilot holes and self-drilling screws
• Rounded roof eaves and 12 in. overhang at the roof gables offer additional protection from the elements
• A heavy-duty 29-gauge galvanized steel sidewall matches the roof and can be attached to the Carport to provide extra protection from the elements
• Roof and sidewall comes in an attractive eggshell finish
• Manufactured in the United States using globally-sourced materials
• Snow load is given as reference only and assume a securely anchored frame according to local building codes and ordinances. These have been calculated using combined snow load provisions in accordance with ASCE 7-05.
• Comes with a 10 year limited warranty

Specifications:

Color: Eggshell
Frame Color: Black
Material: Steel
Assembly Required: Yes
Water Resistant: Yes
Building Shape: Peak
Shape of the Tube: Square
Wall Height: 108.75"

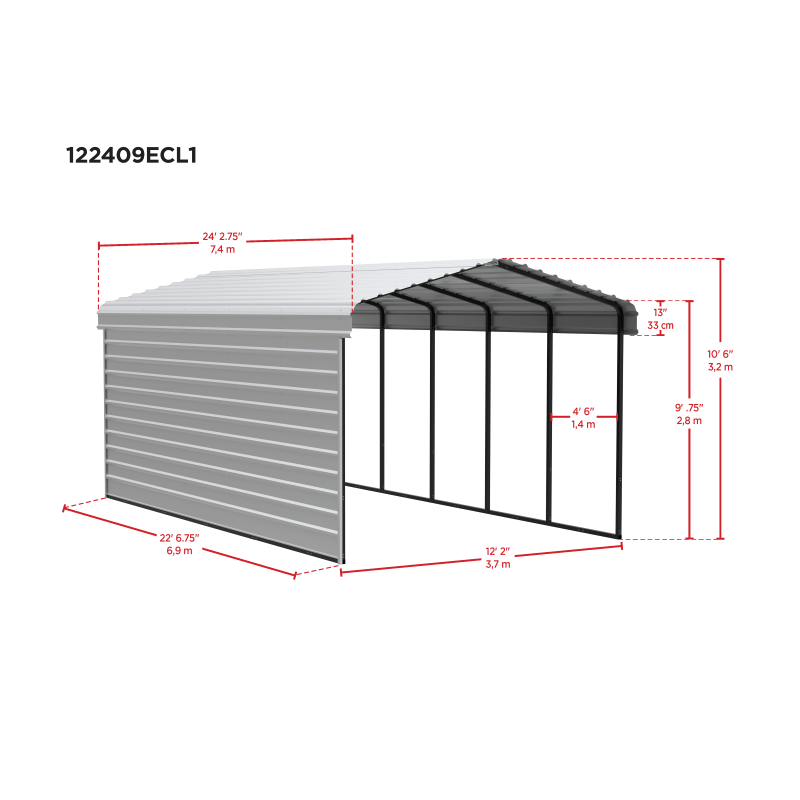

Assembled Exterior Dimensions: 146"W x 290.75"D x 126.75"H
Foundation Dimensions: 300"L x 156"W
Total Storage Volume: 2789 cu. ft
Total Storage Area: 287 sq. ft.
Wind Load Rating: 65 mph
Snow Load Rating: 35 psf
Door / Entrance Width Bottom: 142 in.
Door / Entrance Height: 106.75 in.
Shipping Dimensions: 30.5"W x 71.06"L x 31.53"H
Shipping Weight: 991.15
Number of Boxes: 9
