Arrow 1-Sided 10x20x7 Enclosure Galvanized Steel Carport Kit- Charcoal (CPHC102007ECL1)

Arrow 1-Sided 10x20x7 Enclosure Galvanized Steel Carport Kit- Charcoal (CPHC102007ECL1)

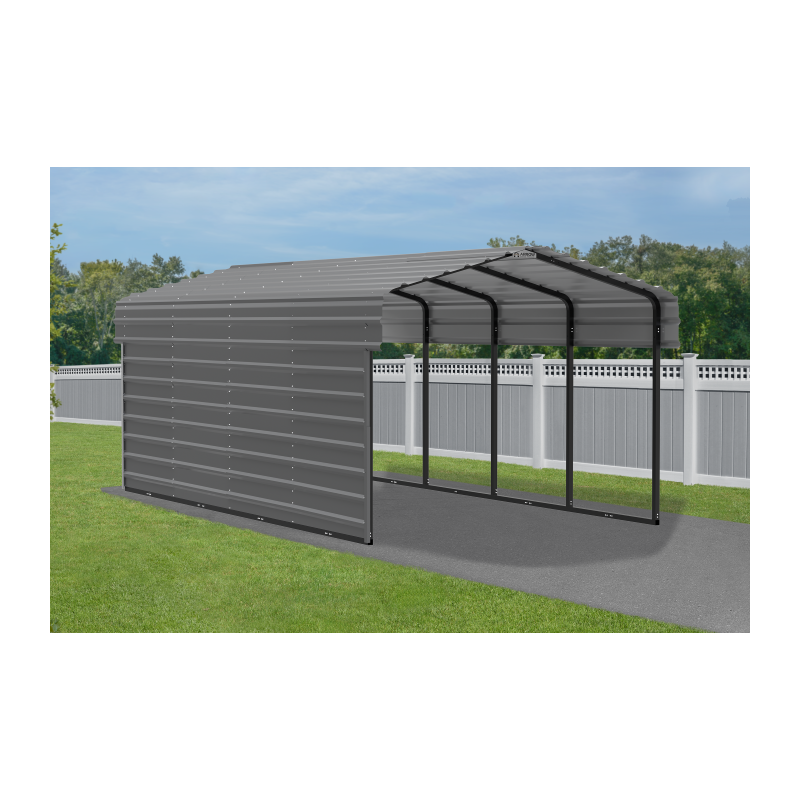

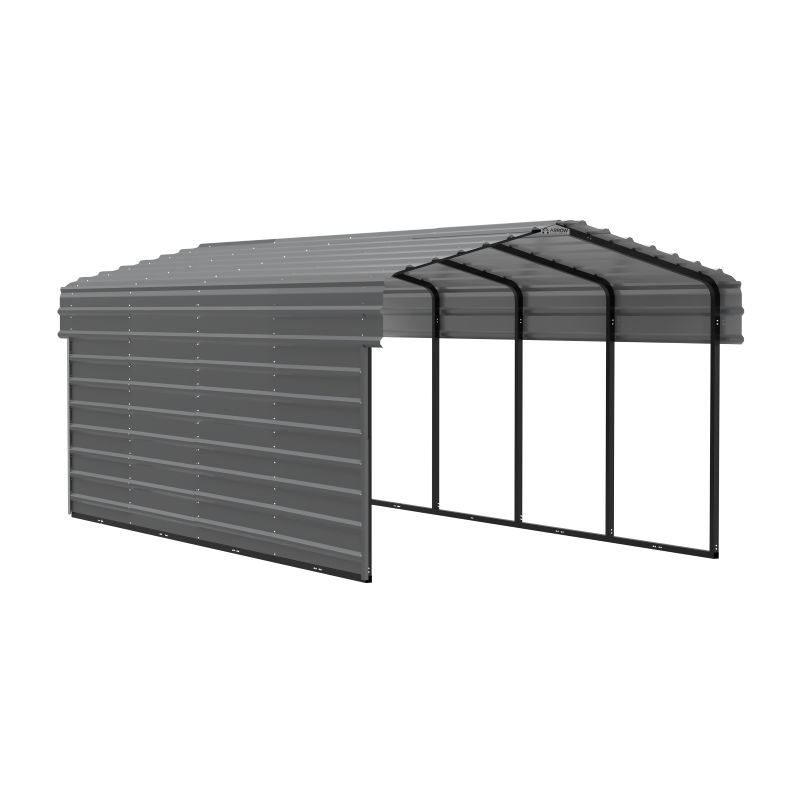

Introducing the Arrow Carport with Enclosure, a sturdy all-steel structure designed to provide versatile protection from the elements. Engineered to withstand tough weather conditions, each carport is snow-load rated, ensuring reliability throughout the year. Whether shielding your vehicle from inclement weather or creating a shaded space for outdoor activities, this enclosure offers convenience and peace of mind for various applications.

Features:

• Featuring a 2 in. square tube powder-coated steel frame
• Built for easier, faster assembly: its unique design features a slip-fit frame connection with pilot holes and self-drilling screws
• Rounded roof eaves and 12 in. overhang at the roof gables offer additional protection from the elements
• A heavy-duty 29-gauge galvanized steel sidewall matches the roof and can be attached to the Carport to provide extra protection from the elements
• Roof and sidewall comes in an attractive eggshell finish
• Manufactured in the United States using globally-sourced materials
• Snow load is given as reference only and assume a securely anchored frame according to local building codes and ordinances. These have been calculated using combined snow load provisions in accordance with ASCE 7-05.
• Comes with a 10 year limited warranty

Specifications:

Color: Charcoal
Frame Color: Black
Material: Steel
Assembly Required: Yes
Water Resistant: Yes
Building Shape: Peak
Shape of the Tube: Square
Wall Height: 84"
Assembled Exterior Dimensions: 120"W x 237"D x 98.4"H
Foundation Dimensions: 252"L x 132"W
Total Storage Volume: 1435 cu. ft
Total Storage Area: 191 sq. ft.
Wind Load Rating: 75 mph
Snow Load Rating: 35 psf
Door / Entrance Width Bottom: 116 in.
Door / Entrance Height: 82 in.
Shipping Dimensions: 30.5"W x 71.06"L x 24.85"H
Shipping Weight: 775.15 lbs
Number of Boxes: 7
