Arrow 2-Sided 20x24x7 Enclosure Galvanized Steel Carport Kit- Charcoal (CPHC202407ECL2)

Arrow 2-Sided 20x24x7 Enclosure Galvanized Steel Carport Kit- Charcoal (CPHC202407ECL2)

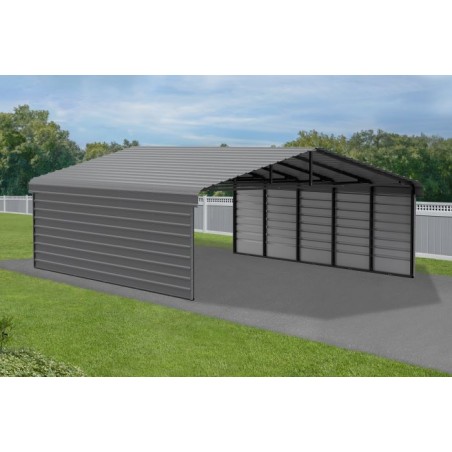

The Arrow Carport with Enclosure is a sturdy, all-steel structure designed to provide reliable protection from harsh weather conditions and heavy snow loads. This comprehensive shelter solution safeguards your vehicle and creates a shaded outdoor space, offering convenience and peace of mind for various applications. Backed by a 10-year limited warranty, this durable structure ensures long-term reliability and performance.

Features:

• Featuring a 22x3 in. powder-coated steel tube frame
• Built for easier, faster assembly: its unique design features a slip-fit frame connection with pilot holes and self-drilling screws
• Rounded roof eaves and 12 in. overhang at the roof gables offer additional protection from the elements

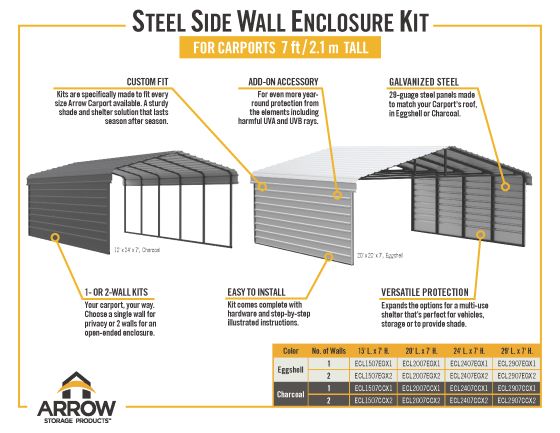

• A heavy-duty 29-gauge galvanized steel sidewall matches the roof and can be attached to the Carport to provide extra protection from the elements
• Roof and sidewall comes in an attractive eggshell finish
• Manufactured in the United States using globally-sourced materials
• Snow load is given as reference only and assume a securely anchored frame according to local building codes and ordinances. These have been calculated using combined snow load provisions in accordance with ASCE 7-05.
• Comes with a 10 year limited warranty

Specifications:

Color: Charcoal
Frame Color: Black
Material: Steel
Assembly Required: Yes
Water Resistant: Yes
Building Shape: Peak
Shape of the Tube: Rectangle
Wall Height: 84"
Assembled Exterior Dimensions: 243"W x 290.75"D x 118"H
Foundation Dimensions: 300"L x 252"W
Total Storage Volume: 3968 cu. ft
Total Storage Area: 479 sq. ft.
Wind Load Rating: 80 mph
Snow Load Rating: 35 psf
Door / Entrance Width Bottom: 237 in.
Door / Entrance Height: 84 in.
Shipping Dimensions: 30.5"W x 76.58"L x 44.28"H
Shipping Weight: 1452.15 lbs
Number of Boxes: 14
