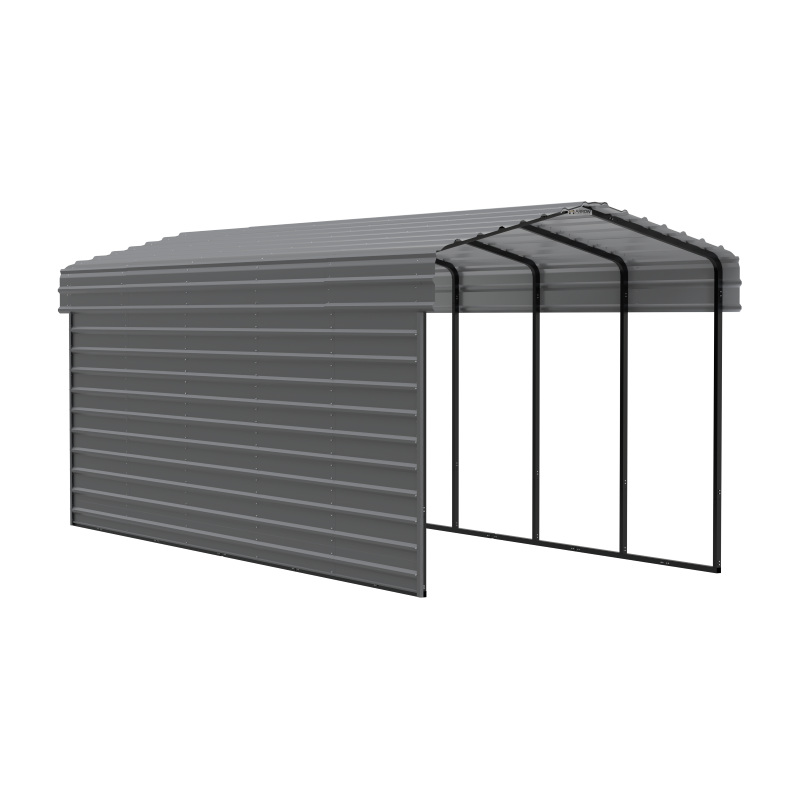

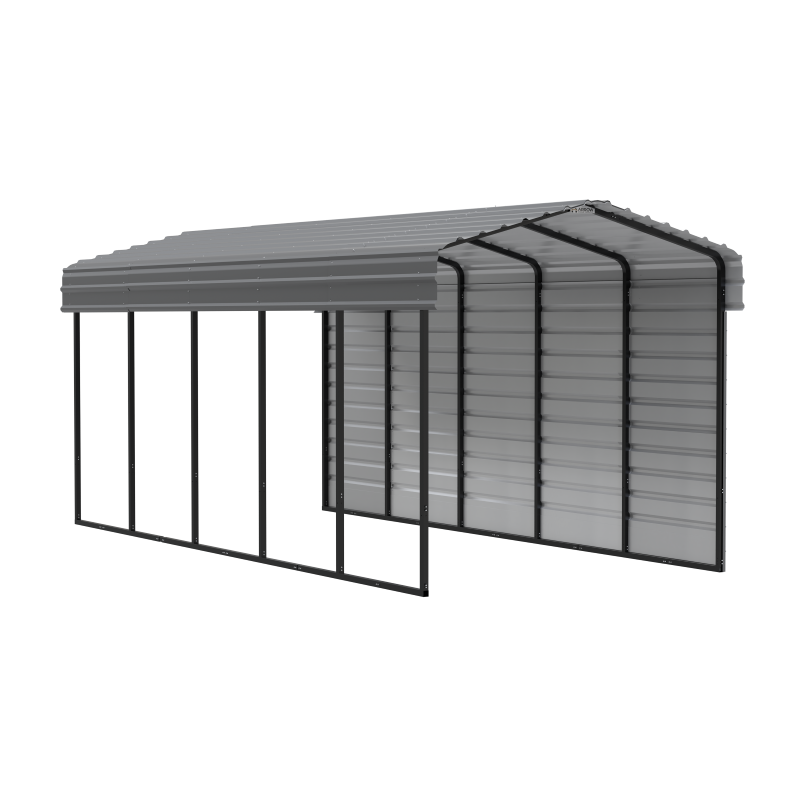

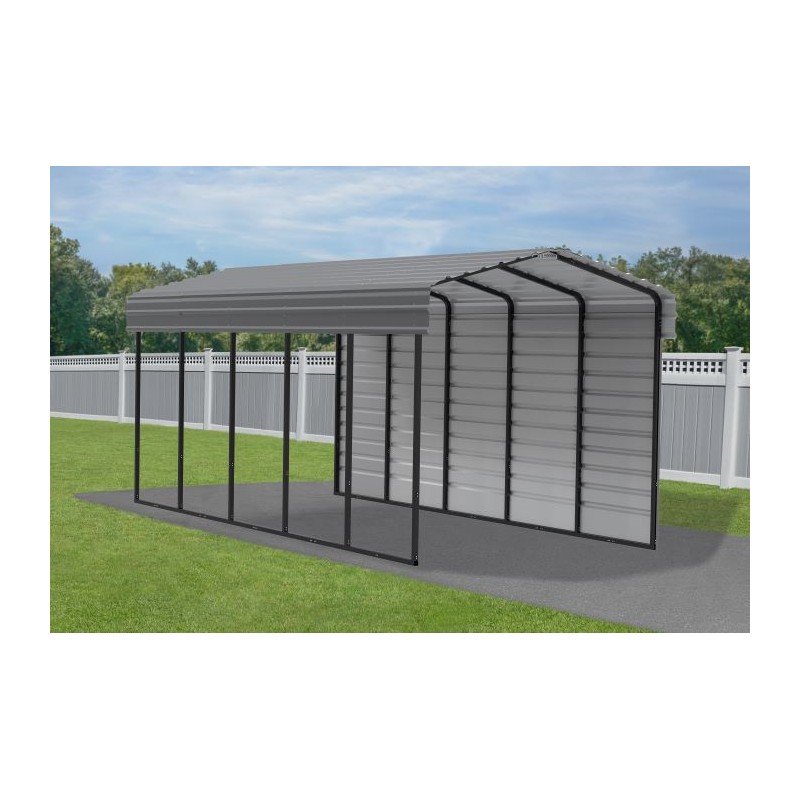

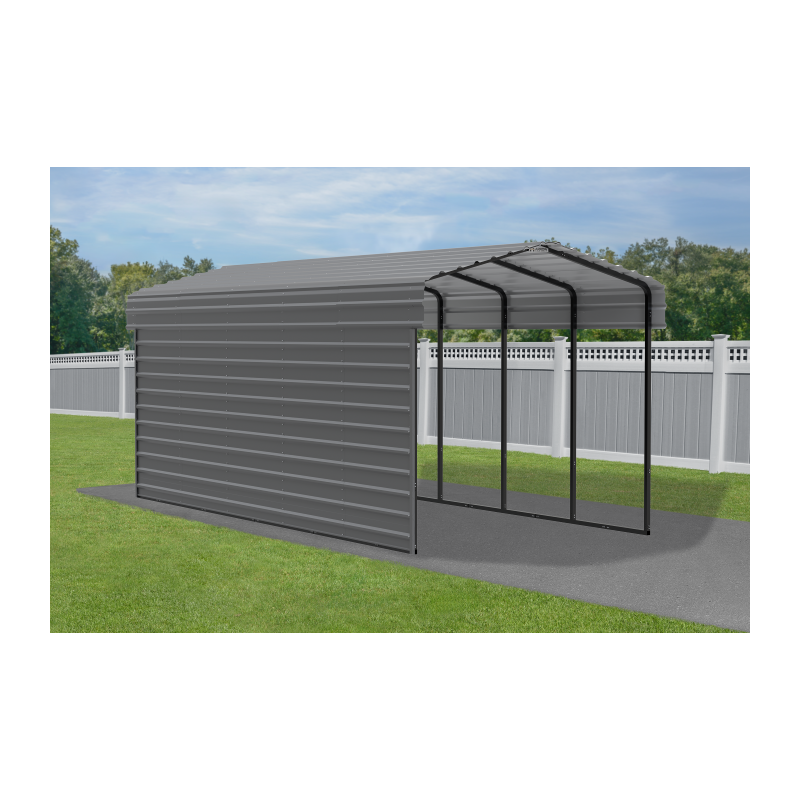

Arrow 1-Sided 10x24x9 Enclosure Galvanized Steel Carport Kit- Charcoal (CPHC102409ECL1)

Arrow 1-Sided 10x24x9 Enclosure Galvanized Steel Carport Kit- Charcoal (CPHC102409ECL1)

The all-steel Arrow Carport with Enclosure is a versatile and practical all-weather shade and shelter solution designed to provide protection from the elements. Each carport is snow-load rated and engineered to withstand tough weather conditions, making it ideal for shielding your vehicle, patio, or party area from the elements. The durable frame is constructed with a 2-inch square tube powder-coated steel frame for added strength and durability, while the unique design features a slip-fit frame connection with pilot holes and self-drilling screws for faster and easier assembly.

Features:

• Featuring a 2x3 in. powder-coated steel tube frame
• Built for easier, faster assembly: its unique design features a slip-fit frame connection with pilot holes and self-drilling screws
• Rounded roof eaves and 12 in. overhang at the roof gables offer additional protection from the elements
• A heavy-duty 29-gauge galvanized steel sidewall matches the roof and can be attached to the Carport to provide extra protection from the elements
• Roof and sidewall comes in an attractive eggshell finish
• Manufactured in the United States using globally-sourced materials
• Snow load is given as reference only and assume a securely anchored frame according to local building codes and ordinances. These have been calculated using combined snow load provisions in accordance with ASCE 7-05.
• Comes with a 10 year limited warranty

Specifications:

Color: Charcoal
Frame Color: Black
Material: Steel
Assembly Required: Yes
Water Resistant: Yes
Building Shape: Peak
Shape of the Tube: Square
Wall Height: 108.75"

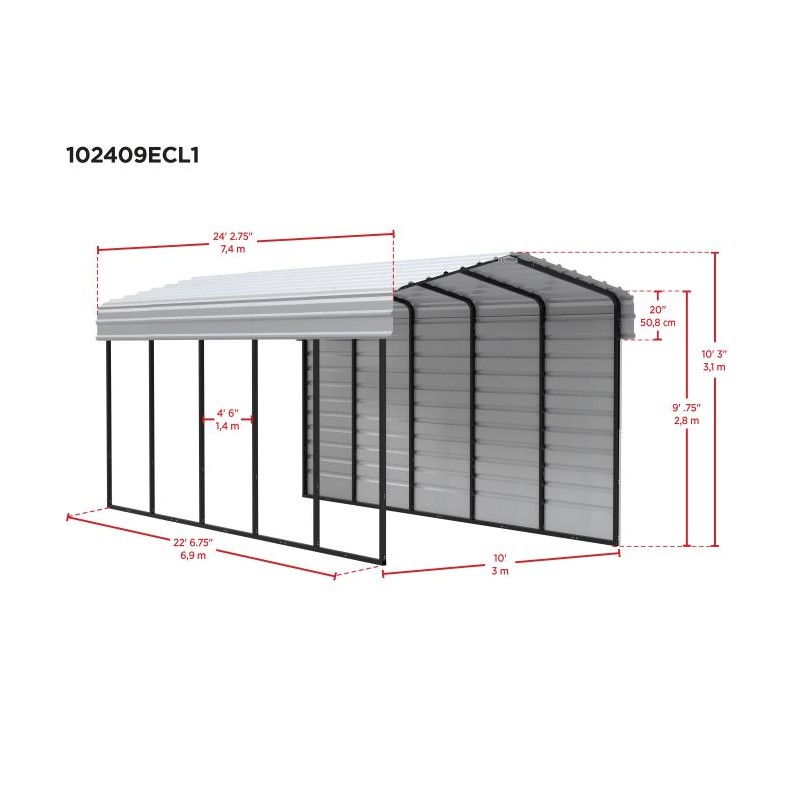

Assembled Exterior Dimensions: 120"W x 290.75"D x 123.15"H
Foundation Dimensions: 360"L x 132"W
Total Storage Volume: 2244 cu. ft
Total Storage Area: 234 sq. ft.
Wind Load Rating: 65 mph
Snow Load Rating: 35 psf
Door / Entrance Width Bottom: 116 in.
Door / Entrance Height: 106.75 in.
Shipping Dimensions: 30.5"W x 71.06"L x 29.18"H
Shipping Weight: 822.15 lbs
Number of Boxes: 11
