Arrow 3 sided 10x20x09 Steel Carport Kit - Eggshell (CPH102009ECL3)

Arrow 3 sided 10x20x09 Steel Carport Kit - Eggshell (CPH102009ECL3)

Introducing the all-steel Arrow Carport with Enclosure, the ultimate solution for all-weather shade and shelter. Designed with versatility and convenience in mind, this carport is perfect for safeguarding your vehicle from the elements or providing shade for your patio or party area. Each Arrow Carport is snow-load rated, ensuring it can withstand harsh weather conditions, making it an ideal choice for year-round use. Built on a sturdy 2-inch square tube powder-coated steel frame, this carport delivers exceptional stability and strength. Its innovative design features slip-fit frame connections with pilot holes and self-drilling screws, ensuring a hassle-free assembly process straight out of the box. The carport's rounded roof eaves and generous 12-inch overhang at the roof gables provide additional protection from rain and snow. The heavy-duty 29-gauge galvanized steel sidewall, matching the roof, can be attached to further enhance shelter from the elements. With its attractive Eggshell finish, the Arrow Carport combines functionality with aesthetic appeal, making it a great addition to any outdoor space. Proudly manufactured in the United States using globally sourced materials, this carport is built to last. It comes backed by a 10-year warranty, providing you with peace of mind and assurance of its durability.

FEATURES

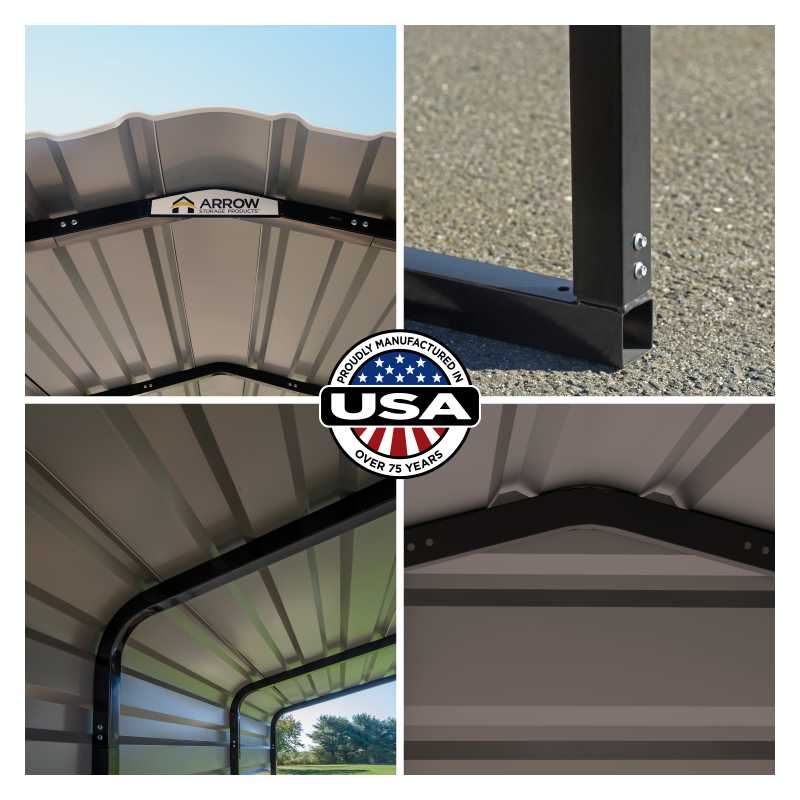

• Featuring a 2 in. square tube powder-coated steel frame, which provides stability and strength to the unit
• Built for easier, faster assembly: its unique design features a slip-fit frame connection with pilot holes and self-drilling screws for assembly that's faster, more convenient right out of the box
• Rounded roof eaves and 12 in. overhang at the roof gables offer additional protection from the elements
• A heavy-duty 29-gauge galvanized steel sidewall matches the roof and can be attached to the Carport to provide extra protection from the elements
• The roof and sidewall panels come in an attractive Eggshell finish
• Manufactured in the United States using globally sourced materials
• Comes with a 10-year warranty
• Snow load is given as reference only and assume a securely anchored frame according to local building codes and ordinances. These have been calculated using combined snow load provisions in accordance with ASCE 7-05.

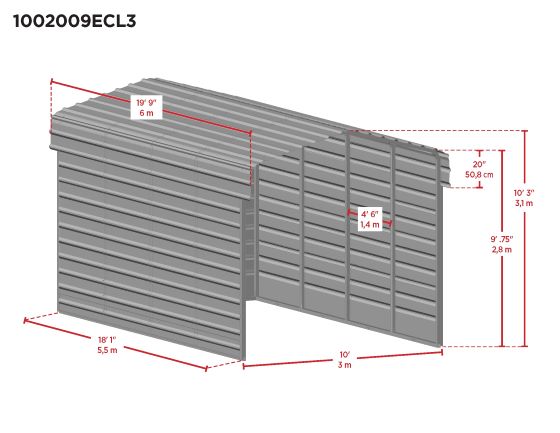

SPECIFICATIONS

Color: Eggshell
Cover Color: Eggshell
Frame Color: Black
Frame Material: Steel
Building Shape: Peak
Shape Of Tube: Square
Foundation Width (In): 132
Foundation Length (In): 252
Door Width Bottom (In): 116
Door Height (In): 106.75
Wall Height (In): 108.75
Assembled Exterior Dimensions Depth (In): 237
Assembled Exterior Dimensions Height (In): 123.15
Assembled Exterior Dimensions Width (In): 120
Total Storage Volume (Cu. Ft.): 1829
Total Storage Area (Sq/Ft): 191
Snow Load Rating (Psf): 35
Wind Load Rating (Mph): 65
Item Gross Weight (Lbs.): 1050
No. Of Boxes: 12

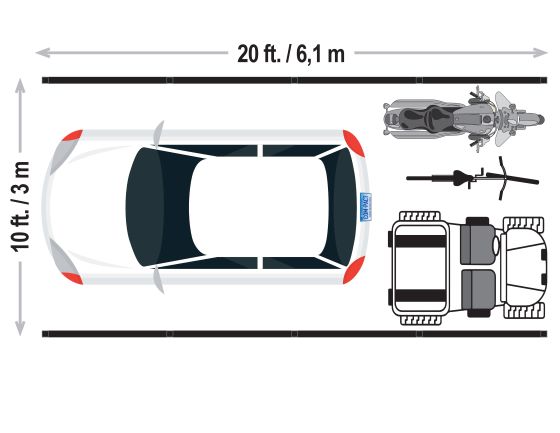

WHAT FITS
