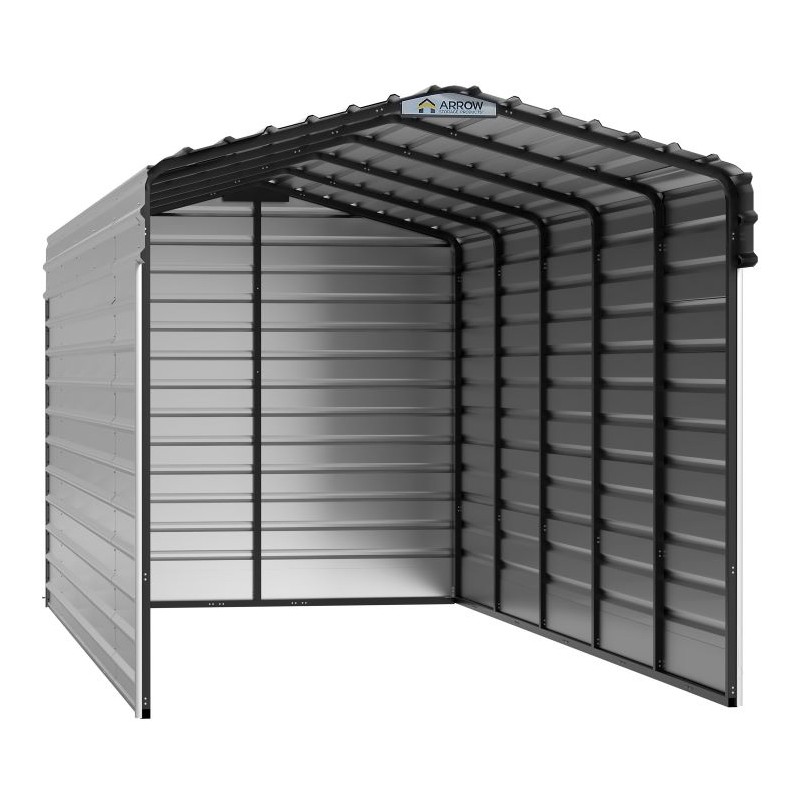

Arrow 3 sided 10x24x09 Steel Carport Kit - Eggshell (CPH102409ECL3)

Arrow 3 sided 10x24x09 Steel Carport Kit - Eggshell (CPH102409ECL3)

Introducing the Arrow Carport with Enclosure, your ultimate solution for all-weather shade and shelter. Crafted from all-steel materials, this carport is engineered to withstand tough weather conditions, making it a reliable choice for protecting your vehicle or creating a comfortable outdoor space for gatherings. Key features include a sturdy 2-inch square tube powder-coated steel frame that ensures stability and strength, while its innovative design allows for quicker and easier assembly. The slip-fit frame connections with pilot holes and self-drilling screws mean you can set it up right out of the box without hassle. The carport boasts rounded roof eaves and a generous 12-inch overhang at the roof gables, providing additional protection from rain and snow. To enhance its functionality, a heavy-duty 29-gauge galvanized steel sidewall can be attached, offering extra shelter from the elements. With its attractive Eggshell finish, the Arrow Carport not only performs well but also looks great in any setting. Proudly manufactured in the United States using globally sourced materials, this carport comes with a 10-year warranty, ensuring your investment is well protected.

FEATURES

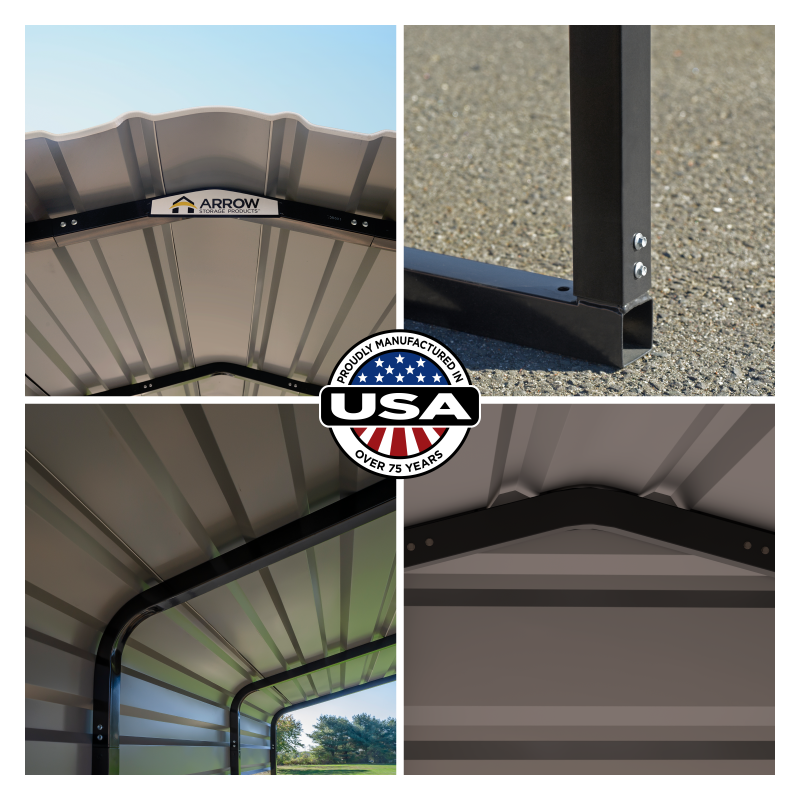

• Featuring a 2 in. square tube powder-coated steel frame, which provides stability and strength to the unit
• Built for easier, faster assembly: its unique design features a slip-fit frame connection with pilot holes and self-drilling screws for assembly that's faster, more convenient right out of the box
• Rounded roof eaves and 12 in. overhang at the roof gables offer additional protection from the elements
• A heavy-duty 29-gauge galvanized steel sidewall matches the roof and can be attached to the Carport to provide extra protection from the elements
• The roof and sidewall panels come in an attractive Eggshell finish
• Manufactured in the United States using globally sourced materials
• Comes with a 10-year warranty
• Snow load is given as reference only and assume a securely anchored frame according to local building codes and ordinances. These have been calculated using combined snow load provisions in accordance with ASCE 7-05.

SPECIFICATIONS

Color: Eggshell
Cover Color: Eggshell
Frame Color: Black
Frame Material: Steel
Building Shape: Peak
Shape Of Tube: Square
Foundation Width (In): 132
Foundation Length (In): 300
Door Width Bottom (In): 116
Door Height (In): 106.75
Wall Height (In): 108.75

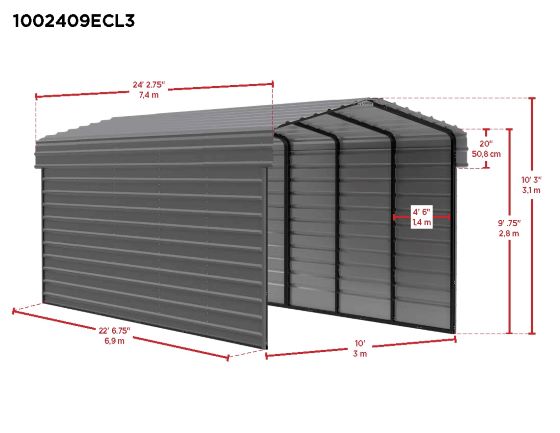

Assembled Exterior Dimensions Depth (In): 290.75
Assembled Exterior Dimensions Height (In): 123.15
Assembled Exterior Dimensions Width (In): 120
Total Storage Volume (Cu. Ft.): 2244
Total Storage Area (Sq/Ft): 234
Snow Load Rating (Psf): 35
Wind Load Rating (Mph): 65
Item Gross Weight (Lbs.): 1264
No. Of Boxes: 16

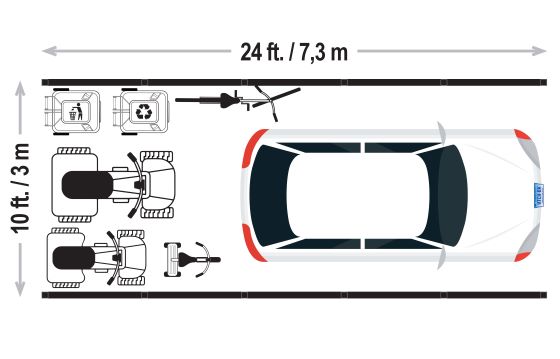

WHAT FITS
