Arrow 3 sided 10X29X07 Steel Carport Kit - Eggshell (CPH102907ECL3)

Arrow 3 sided 10X29X07 Steel Carport Kit - Eggshell (CPH102907ECL3)

Introducing the Arrow Carport with Enclosure – your premier solution for all-weather protection and shade. Constructed from robust all-steel materials, this carport is designed to endure even the harshest weather conditions, making it a dependable choice for safeguarding your vehicle or creating a welcoming outdoor space for gatherings. Key features include a durable 2-inch square tube powder-coated steel frame that guarantees exceptional stability and strength. Its innovative design allows for quick and easy assembly, so you can enjoy your new carport in no time. The slip-fit frame connections, complete with pilot holes and self-drilling screws, ensure a hassle-free setup straight out of the box. With elegantly rounded roof eaves and an impressive 12-inch overhang at the roof gables, the Arrow Carport provides enhanced protection against rain and snow. To further boost its functionality, a heavy-duty 29-gauge galvanized steel sidewall can be added, offering additional shelter from the elements. Not only does the Arrow Carport excel in performance, but its attractive Eggshell finish also enhances the aesthetic appeal of any setting. Proudly manufactured in the United States with globally sourced materials, this carport comes with a generous 10-year warranty, ensuring that your investment is well protected for years to come.

FEATURES

• Featuring a 2 in. square tube powder-coated steel frame, which provides stability and strength to the unit
• Built for easier, faster assembly: its unique design features a slip-fit frame connection with pilot holes and self-drilling screws for assembly that's faster, more convenient right out of the box
• Rounded roof eaves and 12 in. overhang at the roof gables offer additional protection from the elements
• A heavy-duty 29-gauge galvanized steel sidewall matches the roof and can be attached to the Carport to provide extra protection from the elements
• The roof and sidewall panels come in an attractive Eggshell finish
• Manufactured in the United States using globally sourced materials
• Comes with a 10-year warranty
• Snow load is given as reference only and assume a securely anchored frame according to local building codes and ordinances. These have been calculated using combined snow load provisions in accordance with ASCE 7-05.

SPECIFICATIONS

Color: Eggshell
Cover Color: Eggshell
Frame Color: Black
Frame Material: Steel
Building Shape: Peak
Shape Of Tube: Square
Foundation Width (In): 132
Foundation Length (In): 360
Door Width Bottom (In): 116
Door Height (In): 82
Wall Height (In): 84
Assembled Exterior Dimensions Depth (In): 344.5
Assembled Exterior Dimensions Height (In): 98.4
Assembled Exterior Dimensions Width (In): 120
Total Storage Volume (Cu. Ft.): 2086
Total Storage Area (Sq/Ft): 278
Snow Load Rating (Psf): 35
Wind Load Rating (Mph): 75
Item Gross Weight (Lbs.): 1431
No. Of Boxes: 19

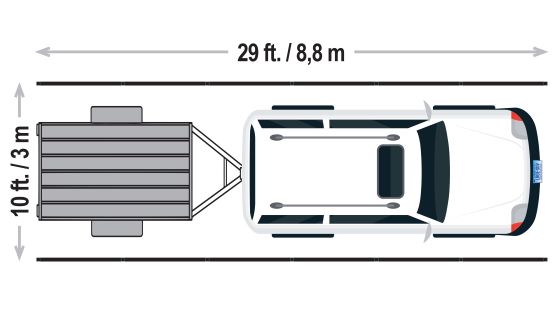

WHAT FITS
