Arrow 3-Sided 20x20x9 Steel Carport Kit - Eggshell (CPH202009ECL3)

Arrow 3-Sided 20x20x9 Steel Carport Kit - Eggshell (CPH202009ECL3)

Elevate your outdoor area with our premium carport, expertly designed to withstand the toughest weather conditions while offering unmatched protection for your vehicles and equipment. Built with a sturdy 2-inch square tube powder-coated steel frame, this carport delivers exceptional stability and strength, making it perfect for any setting. Its innovative design, featuring slip-fit frame connections, pilot holes, and self-drilling screws, ensures a quick and straightforward assembly process, so you can start enjoying your carport immediately. The carport’s elegantly rounded roof eaves and a 12-inch overhang at the gables not only enhance its visual appeal but also provide added defense against rain, snow, and other harsh elements. For even greater durability, a heavy-duty 29-gauge galvanized steel sidewall can be easily attached, safeguarding your investment against the elements. Finished in a sleek Eggshell color, this carport seamlessly blends with any property aesthetic while delivering superior functionality. Proudly made in the United States with globally sourced materials, you can trust in its lasting quality and reliability.

FEATURES

• Featuring a 2 in. square tube powder-coated steel frame, which provides stability and strength to the unit
• Built for easier, faster assembly: its unique design features a slip-fit frame connection with pilot holes and self-drilling screws for assembly that's faster, more convenient right out of the box
• Rounded roof eaves and 12 in. overhang at the roof gables offer additional protection from the elements
• A heavy-duty 29-gauge galvanized steel sidewall matches the roof and can be attached to the Carport to provide extra protection from the elements
• The roof and sidewall panels come in an attractive Eggshell finish
• Manufactured in the United States using globally sourced materials
• Comes with a 10-year warranty
• Snow load is given as reference only and assume a securely anchored frame according to local building codes and ordinances. These have been calculated using combined snow load provisions in accordance with ASCE 7-05.

SPECIFICATIONS

Color: Eggshell
Cover Color: Eggshell
Frame Color: Black
Frame Material: Steel
Building Shape: Peak
Shape Of Tube: Rectangle

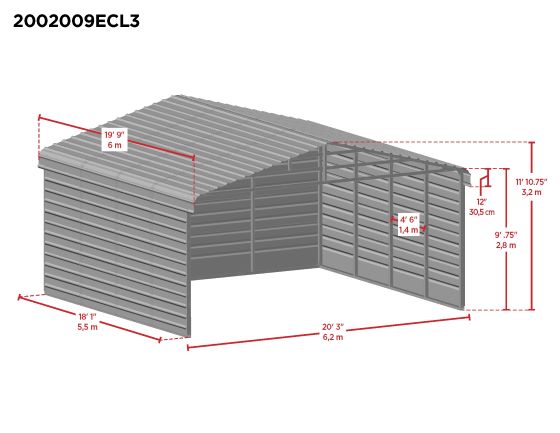

Foundation Width (In): 252
Foundation Length (In): 252
Door Width Bottom (In): 237
Door Height (In): 108.75
Wall Height (In): 108.75
Assembled Exterior Dimensions Depth (In): 237
Assembled Exterior Dimensions Height (In): 142.75
Assembled Exterior Dimensions Width (In): 243
Total Storage Volume (Cu. Ft.): 4055
Total Storage Area (Sq/Ft): 390
Snow Load Rating (Psf): 30
Wind Load Rating (Mph): 70
Item Gross Weight (Lbs.): 1815
No. Of Boxes: 10
