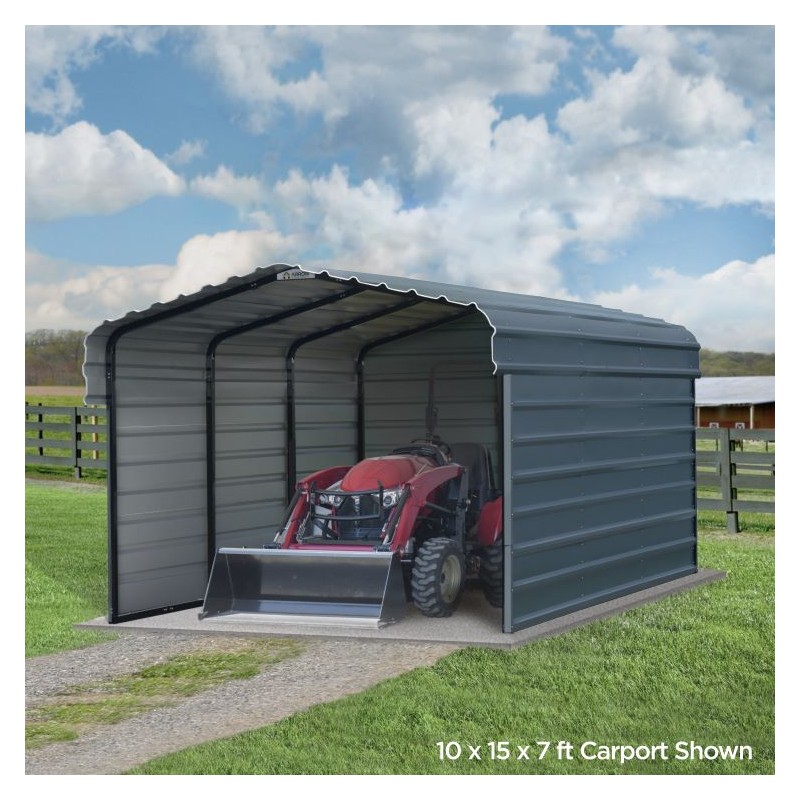

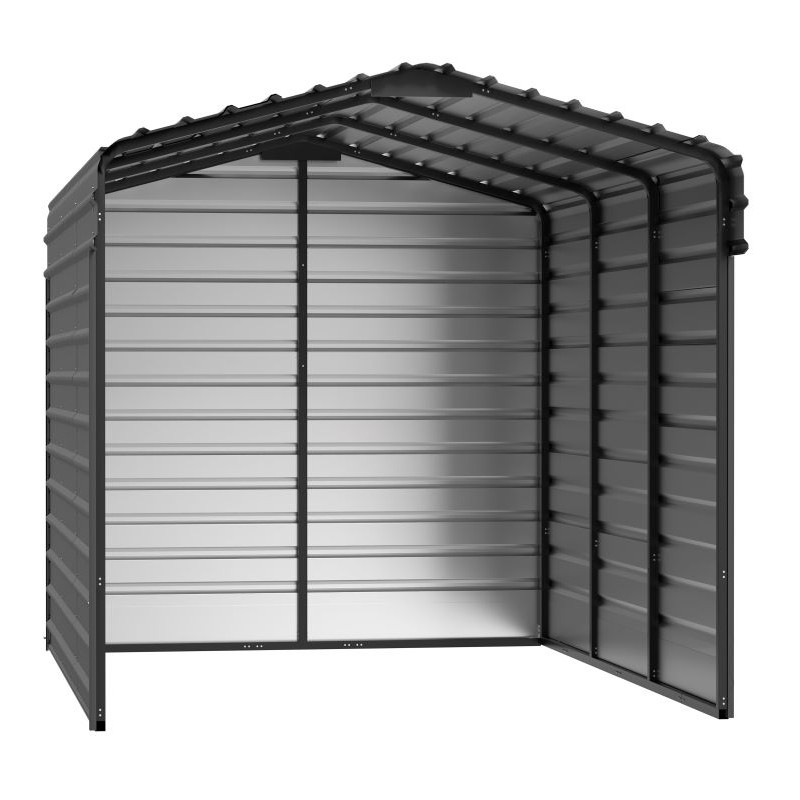

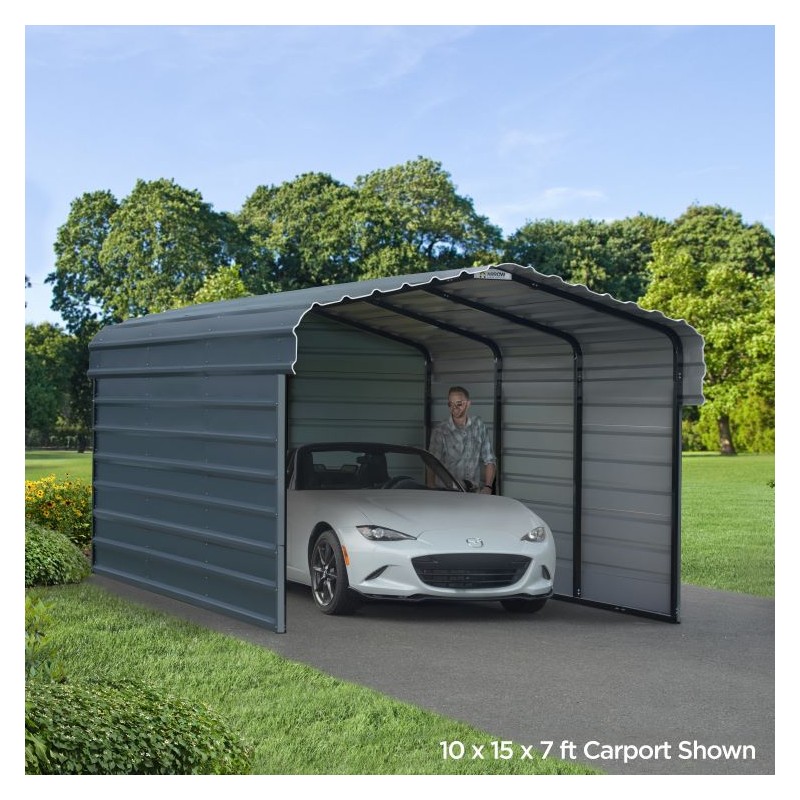

Arrow 3-Sided 10x15x9 Galvanized Steel Carport Kit - Charcoal (CPHC101509ECL3)

Arrow 3-Sided 10x15x9 Galvanized Steel Carport Kit - Charcoal (CPHC101509ECL3)

Elevate your property with our premium carport, expertly designed to endure harsh weather conditions while providing unmatched protection for your vehicles and equipment. Constructed with a sturdy 2-inch square tube powder-coated steel frame, this carport offers exceptional stability and strength, making it a reliable choice for any environment. Thoughtfully engineered for ease of use, it features slip-fit frame connections, pre-drilled pilot holes, and self-drilling screws, ensuring a quick and hassle-free assembly. Spend less time building and more time enjoying the benefits of your new carport. The gracefully curved roof eaves and 12-inch overhang at the gables not only add a touch of elegance but also enhance functionality by offering superior protection against rain, snow, and other extreme weather conditions. For added durability, opt for the heavy-duty 29-gauge galvanized steel sidewall, an upgrade that further shields your investment from the elements.

FEATURES

• Featuring a 2 in. square tube powder-coated steel frame, which provides stability and strength to the unit
• Built for easier, faster assembly: its unique design features a slip-fit frame connection with pilot holes and self-drilling screws for assembly that's faster, more convenient right out of the box
• Rounded roof eaves and 12 in. overhang at the roof gables offer additional protection from the elements
• A heavy-duty 29-gauge galvanized steel sidewall matches the roof and can be attached to the Carport to provide extra protection from the elements
• The roof and sidewall panels come in an attractive Eggshell finish
• Manufactured in the United States using globally sourced materials
• Comes with a 10-year warranty
• Snow load is given as reference only and assume a securely anchored frame according to local building codes and ordinances. These have been calculated using combined snow load provisions in accordance with ASCE 7-05.

SPECIFICATIONS

Color: Charcoal
Cover Color: Charcoal
Frame Color: Black
Frame Material: Steel
Building Shape: Peak
Shape Of Tube: Square

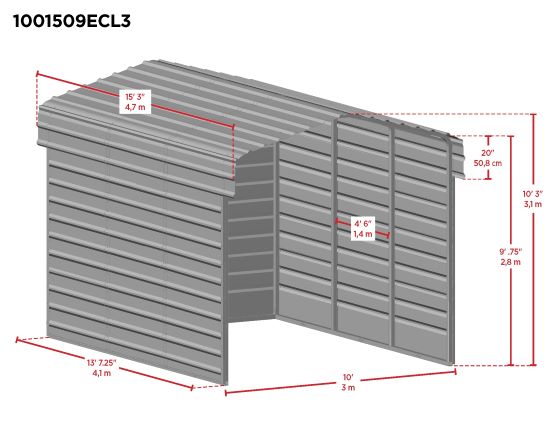

Foundation Width (In): 132
Foundation Length (In): 192
Door Width Bottom (In): 116
Door Height (In):106.75
Wall Height (In): 108.75
Assembled Exterior Dimensions Depth (In): 183.25
Assembled Exterior Dimensions Height (In): 123.15
Assembled Exterior Dimensions Width (In): 120
Total Storage Volume (Cu. Ft.): 1414
Total Storage Area (Sq/Ft): 148
Snow Load Rating (Psf): 35
Wind Load Rating (Mph): 65
Item Gross Weight (Lbs.): 885
Number of Boxes: 8
