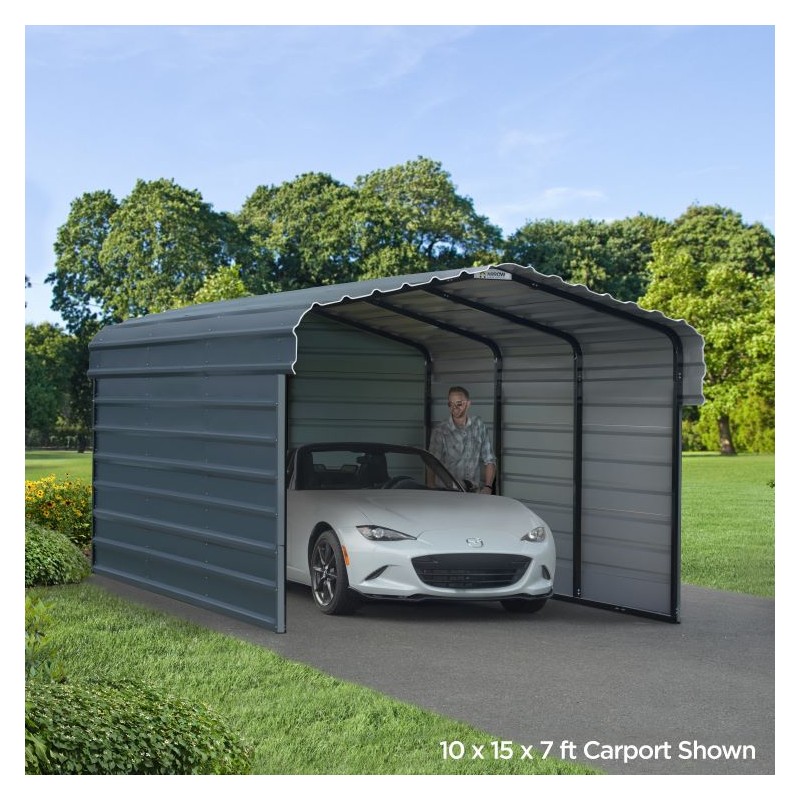

Arrow 3-sided 10x29x9 Enclosure Steel Carport Kit - Charcoal (CPHC102909ECL3)

Arrow 3-sided 10x29x9 Enclosure Steel Carport Kit - Charcoal(CPHC102909ECL3)

ransform your property with our premium carport, meticulously designed to withstand the harshest weather while providing unparalleled protection for your vehicles and equipment. Featuring a robust 2-inch square tube powder-coated steel frame, this carport guarantees exceptional stability and strength, making it a dependable choice for any environment. Engineered with user-friendliness in mind, it boasts slip-fit frame connections, pre-drilled pilot holes, and self-drilling screws, ensuring a swift and seamless assembly process. Spend less time on construction and more time reaping the rewards of your new carport. The elegantly curved roof eaves and generous 12-inch overhang at the gables not only enhance its visual appeal but also offer superior defense against rain, snow, and other extreme weather conditions. For those seeking additional durability, consider the heavy-duty 29-gauge galvanized steel sidewall upgrade, which provides extra protection for your investment.

FEATURES

• Featuring a 2 in. square tube powder-coated steel frame, which provides stability and strength to the unit
• Built for easier, faster assembly: its unique design features a slip-fit frame connection with pilot holes and self-drilling screws for assembly that's faster, more convenient right out of the box
• Rounded roof eaves and 12 in. overhang at the roof gables offer additional protection from the elements
• A heavy-duty 29-gauge galvanized steel sidewall matches the roof and can be attached to the Carport to provide extra protection from the elements
• The roof and sidewall panels come in an attractive Eggshell finish
• Manufactured in the United States using globally sourced materials
• Comes with a 10-year warranty
• Snow load is given as reference only and assume a securely anchored frame according to local building codes and ordinances. These have been calculated using combined snow load provisions in accordance with ASCE 7-05.

SPECIFICATIONS

Color: Charcoal
Cover Color: Charcoal
Frame Color: Black
Frame Material: Steel
Building Shape: Peak
Shape Of Tube: Square

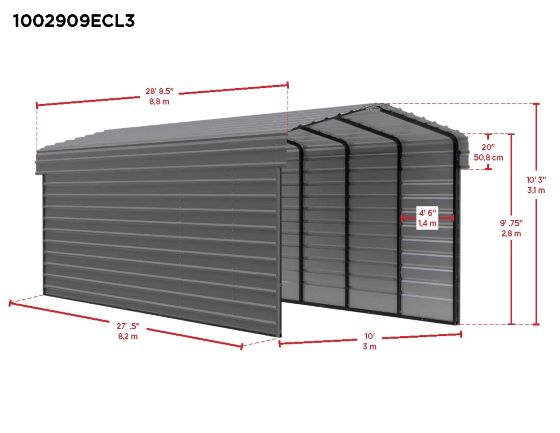

Foundation Width (In): 132
Foundation Length (In): 360
Door Width Bottom (In): 116
Door Height (In):106.75
Wall Height (In): 108.75
Assembled Exterior Dimensions Depth (In): 344.5
Assembled Exterior Dimensions Height (In):123.15
Assembled Exterior Dimensions Width (In): 120
Total Storage Volume (Cu. Ft.): 2658
Total Storage Area (Sq/Ft): 278
Snow Load Rating (Psf): 35
Wind Load Rating (Mph): 65
Item Gross Weight (Lbs.): 1562
Number of Boxes: 10
