Arrow 3-Sided 20x20x9 Enclosure Steel Carport Kit - Charcoal (CPHC202009ECL3)

Arrow 3-Sided 20x20x9 Enclosure Steel Carport Kit - Charcoal (CPHC202009ECL3)

Discover the perfect blend of style, durability, and functionality with our premium carport, designed to withstand the rigors of harsh weather conditions while offering exceptional protection for your vehicles and equipment. Constructed from a robust 2-inch square tube powder-coated steel frame, this carport delivers outstanding strength and stability, making it a reliable addition to any property. With user-friendly features such as slip-fit frame connections, pre-drilled pilot holes, and self-drilling screws, you can assemble your carport quickly and effortlessly, freeing up your time to enjoy the benefits it brings. The elegantly curved roof eaves and generous 12-inch overhang at the gables not only enhance the visual appeal of your property but also provide enhanced protection against rain, snow, and severe weather. For those who want to take durability to the next level, consider upgrading to our heavy-duty 29-gauge galvanized steel sidewall, ensuring your investment remains safe and secure against the elements for years to come.

FEATURES

• Featuring a 2 in. square tube powder-coated steel frame, which provides stability and strength to the unit
• Built for easier, faster assembly: its unique design features a slip-fit frame connection with pilot holes and self-drilling screws for assembly that's faster, more convenient right out of the box
• Rounded roof eaves and 12 in. overhang at the roof gables offer additional protection from the elements
• A heavy-duty 29-gauge galvanized steel sidewall matches the roof and can be attached to the Carport to provide extra protection from the elements
• The roof and sidewall panels come in an attractive Eggshell finish
• Manufactured in the United States using globally sourced materials
• Comes with a 10-year warranty
• Snow load is given as reference only and assume a securely anchored frame according to local building codes and ordinances. These have been calculated using combined snow load provisions in accordance with ASCE 7-05.

SPECIFICATIONS
Color: Charcoal
Cover Color: Charcoal
Frame Color: Black
Frame Material: Steel
Building Shape: Peak
Shape Of Tube: Square

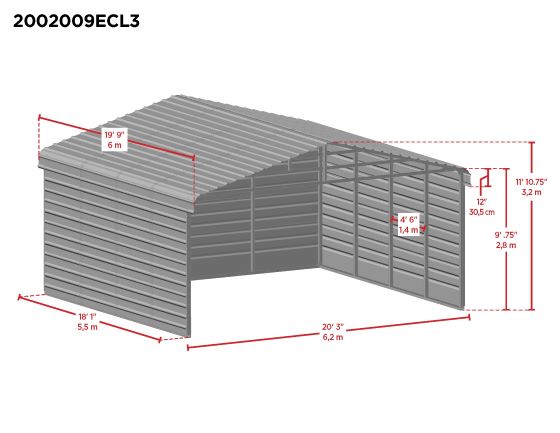

Foundation Width (In): 252
Foundation Length (In): 252
Door Width Bottom (In): 237
Door Height (In): 108.75
Wall Height (In): 108.75
Assembled Exterior Dimensions Depth (In): 237
Assembled Exterior Dimensions Height (In):142.75
Assembled Exterior Dimensions Width (In): 243
Total Storage Volume (Cu. Ft.): 4055
Total Storage Area (Sq/Ft): 390
Snow Load Rating (Psf): 35
Wind Load Rating (Mph):70
Item Gross Weight (Lbs.): 1766
Number of Boxes :14
