Arrow 3-Sided 20x29x9 Enclosure Steel Carport Kit - Charcoal (CPHC202909ECL3)

Arrow 3-Sided 20x29x9 Enclosure Steel Carport Kit - Charcoal (CPHC202909ECL3)

Transform your outdoor space and safeguard your investments with our premium carport, meticulously engineered to withstand even the harshest weather conditions. Crafted from a robust 2-inch square tube powder-coated steel frame, this carport provides unparalleled stability and strength, making it the ideal choice for any climate. The innovative design features slip-fit frame connections, pre-drilled pilot holes, and self-drilling screws, allowing for a seamless assembly process that saves you valuable time and effort. Once installed, you can relish in the peace of mind that comes from knowing your vehicles and equipment are protected. The elegantly curved roof eaves and generous 12-inch overhang at the gables not only lend a sophisticated touch to your property but also enhance functionality by offering exceptional defense against rain, snow, and other extreme weather elements. For those seeking an extra layer of protection, consider our heavy-duty 29-gauge galvanized steel sidewall upgrade, ensuring your investment remains shielded from the rigors of the elements for years to come.

FEATURES

• Featuring a 2 in. square tube powder-coated steel frame, which provides stability and strength to the unit
• Built for easier, faster assembly: its unique design features a slip-fit frame connection with pilot holes and self-drilling screws for assembly that's faster, more convenient right out of the box

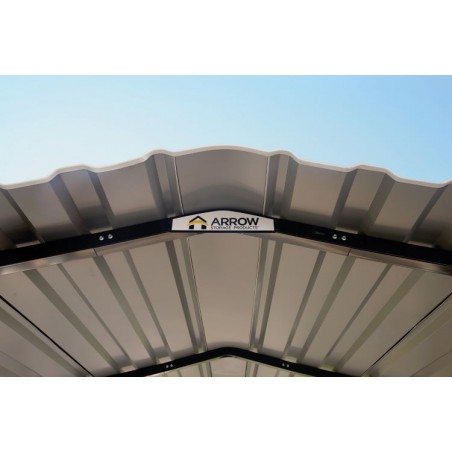

• Rounded roof eaves and 12 in. overhang at the roof gables offer additional protection from the elements
• A heavy-duty 29-gauge galvanized steel sidewall matches the roof and can be attached to the Carport to provide extra protection from the elements
• The roof and sidewall panels come in an attractive Eggshell finish
• Manufactured in the United States using globally sourced materials
• Comes with a 10-year warranty
• Snow load is given as reference only and assume a securely anchored frame according to local building codes and ordinances. These have been calculated using combined snow load provisions in accordance with ASCE 7-05.

SPECIFICATIONS

Color: Charcoal
Cover Color: Charcoal
Frame Color: Black
Frame Material: Steel
Building Shape: Peak
Shape Of Tube: Square
Foundation Width (In): 252
Foundation Length (In): 360
Door Width Bottom (In): 237
Door Height (In): 108.75
Wall Height (In): 108.75

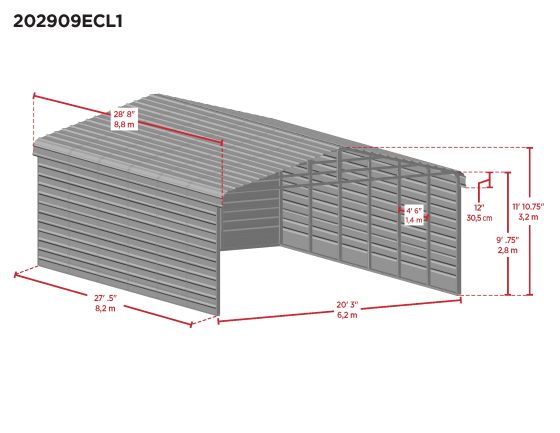

Assembled Exterior Dimensions Depth (In): 344.5
Assembled Exterior Dimensions Height (In): 142.75
Assembled Exterior Dimensions Width (In): 243
Total Storage Volume (Cu. Ft.): 5894
Total Storage Area (Sq/Ft): 567
Snow Load Rating (Psf): 30
Wind Load Rating (Mph): 70
Item Gross Weight (Lbs.): 2432
Number of Boxes : 22
