Best Barns Crafted Colossal Elite 16x28 Pre Cut Barndominium w/ Man Door + Dormers (CCOLMD28)

Watch our video to learn more about Best Barns Crafted Colossal Elite Series with Man Door and Dormer! Build it yourself with ease and enjoy lasting strength, timeless style,and savings.

Best Barns Crafted Colossal Elite 16x28 Pre Cut Barndominium w/ Man Door + Dormers (CCOLMD28)

Unlock the full potential of your property with the Crafted Colossal 16x28 Elite Series Wood Barndominium Kit. This versatile two-story building features virtually unlimited storage space, making it ideal for everything from a spacious workshop, office, and outdoor getaway, to the perfect she-shed or even a cabin-like retreat. The second-story loft provides a generous area tall enough to stand in, perfect for a kids' playroom, additional storage, or anything else you can imagine. With a 7' 3" clearance on the first floor and 7' 1" on the second, there’s plenty of room to move around, while the 2x4 stud construction spaced 16 inches apart gives you the flexibility to add insulation and create a comfortable, climate-controlled space. Whether you choose to add drywall or wall paneling, you can easily transform the interior into a stylish, finished area.

Engineered to withstand tough conditions, this Barndominium can handle wind speeds of up to 140 mph and snow loads of up to 30 lbs per square foot. Built with premium materials like TimberPrestige Eurowood and LP SmartSide siding, the kit is primed and ready for paint, ensuring durability and longevity. The Elite Package includes a 36" wide 9-Lite man door, a 20' dormer, two 32"x36" insulated dormer windows, and two 36"x36" insulated lower wall windows, all accented with paintable shutters and insect-proof screens. The included SecureTruss system, precision pre-cut materials, and all necessary hardware make assembly a breeze. Whether you're looking for a new storage space or a luxurious getaway, this Barndominium kit has everything you need to bring your vision to life. Don’t wait to finally get that extra space you’ve always dreamed of! (previously sold as the Camp Reynolds shed kit, this is the same shed reworked for better quality and marketing).

FEATURES

• Sizes: Available in 16x28 and 16x32
• Sturdy-Built Truss System
• 45 lbs snow load
• 130 mph max wind load
• 2x6 trusses
• Clear-Span Loft
• Full Second-Floor Loft with 7'1" headroom
• 3/4" T&G floor sheathing supported with 2x10 floor joists

Engineered SecureTruss Roof System:

• 130 mph wind resistance
• 45 lbs/sq. ft. snow load rating
• Hurricane truss hangers included for added strength and safety
• Collar ties, gussets, tie plates, and two-stud corner construction ensure durability

TimberPrestige Eurowood Framing:

• Clean, uniform lumber with fewer knots
• Less warping and splintering for faster, easier assembly
• Greater consistency and enhanced rigidity
• Built with 2x4 studs spaced 24" on center

Premium Siding Included:

• 3/8" LP SmartSide exterior paneling
• Pre-primed and ready for painting
• Resists fungal decay and insect damage
• Backed by a 50-year limited warranty

CONSTRUCTION MATERIALS

The roof truss system is engineered with 2x6 lumber, spaced 24 inches on center, providing reliable strength and stability. The remaining structure features 2x4 wall studs, spaced 16 inches on center, ensuring solid framing throughout. All wood trusses arrive pre-cut for accurate on-site assembly. Pressure-treated bottom plates are included for durability and moisture resistance. However, flooring for the first floor is not included —you may use concrete or plywood depending on your project needs. The first-floor foundation can be built using a wood floor system, post-and-beam base, concrete slab, or existing basement slab, as outlined in the owner’s manual.

Elite Package – What’s Included

STRUCTURE & LAYOUT

• Expansive second-story loft
• L-shaped staircase for loft access
• 20' dormer

DOORS

• 36" wide, 9-lite entry door (main entrance)

WINDOWS

• (2) 32" x 36" insulated dormer windows
• (2) 36" x 36" insulated lower wall windows
• Paintable shutters

FRAMING & MATERIALS

• SecureTruss framing system
• TimberPrestige premium imported Eurowood
• Precision-cut materials for streamlined assembly
• LP SmartSide siding (pre-primed and ready for paint)

HARDWARE KIT

• Door hinges
• Door latches
• Trusses
• Nails
• Gusset glue
• Detailed instruction manual

NOT INCLUDED

Paint, shingles, foundation, and roof edging are not included and are to be provided by the owner.

FLOOR KIT

Flooring and foundation materials are not part of the Barndominium kit and must be purchased and constructed separately by the homeowner. Be sure to check local building codes before beginning construction. The upper storage loft is designed with 2x10 floor joists, spaced 16 inches on center, for strong overhead support. Wall framing includes pre-cut 2x4 studs, also spaced 16 inches on center, for straightforward assembly. Exterior walls are finished with Louisiana Pacific (LP) SmartSide pre-primed siding, ready for painting and long-lasting protection.

SIDING

Engineered for strength and reliability, the structure is built with our SecureTruss framing system, TimberPrestige premium imported Eurowood, and precision pre-cut materials to ensure a straightforward, high-quality assembly.

INTERIOR

The included L-shaped staircase offers effortless access to the spacious second-floor loft, making it both functional and stylish

ELEVATION

INSULATED WINDOW with SHUTTERS

Bask in natural light and fresh air with four fully functional insulated windows  two 32" x 36" and two 36" x 36". Each window is equipped with a secure, lockable frame for peace of mind and durable insect screens, allowing for ventilation while keeping pests at bay.

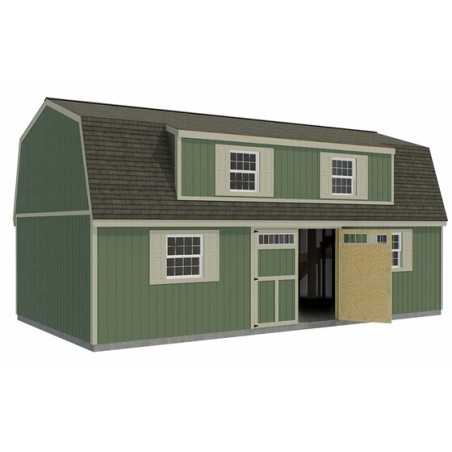

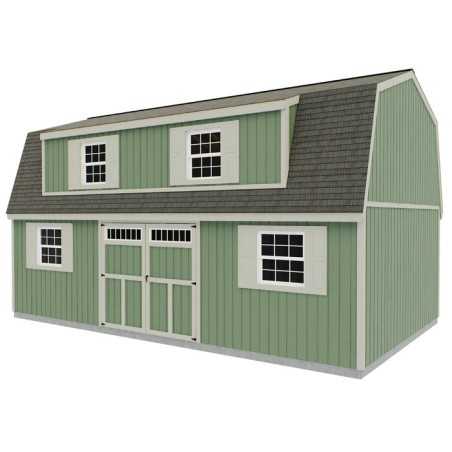

Our Crafted Colossal Elite 16x28 Barndominium features a second floor with stairs, a 9-lite door, dormers, and four insulated windows.

Check out the incredible cabin retreat created by a customer using the Crafted Colossal shed kit — a perfect transformation into a stunning getaway!
