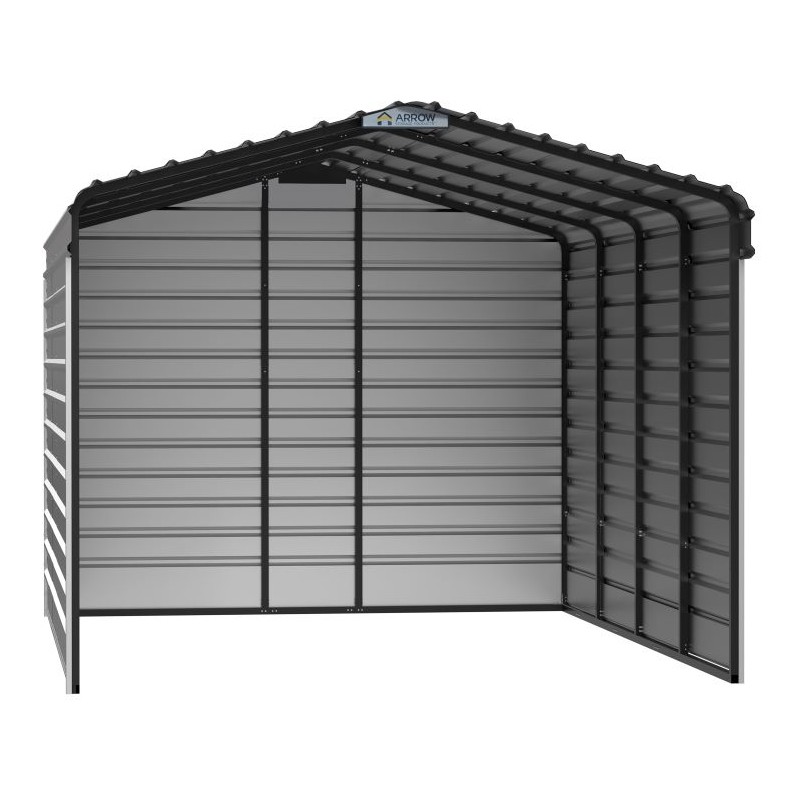

Arrow 3 sided 12x20x09 Enclosure Steel Carport Kit - Eggshell (CPH122009ECL3)

Arrow 3 sided 12x20x09 Enclosure Steel Carport Kit - Eggshell (CPH122009ECL3)

Introducing the Arrow Carport with Enclosure, the ultimate solution for all-weather protection and shade. Built with robust all-steel materials, this carport is engineered to withstand even the most extreme weather conditions, making it a reliable choice for safeguarding your vehicle or creating a welcoming outdoor space for gatherings. Key features include a sturdy 2-inch square tube powder-coated steel frame, ensuring exceptional stability and strength. The innovative design allows for quick and easy assembly, thanks to slip-fit frame connections with pilot holes and self-drilling screws, ensuring a hassle-free setup. The elegantly rounded roof eaves and impressive 12-inch overhang at the roof gables provide enhanced protection against rain and snow. For added functionality, a heavy-duty 29-gauge galvanized steel sidewall can be integrated, offering extra shelter from the elements. Not only does the Arrow Carport excel in performance, but its attractive Eggshell finish also elevates the aesthetic appeal of any setting. Proudly manufactured in the United States with globally sourced materials, this carport is backed by a generous 10-year warranty, ensuring your investment is well protected for years to come.

FEATURES

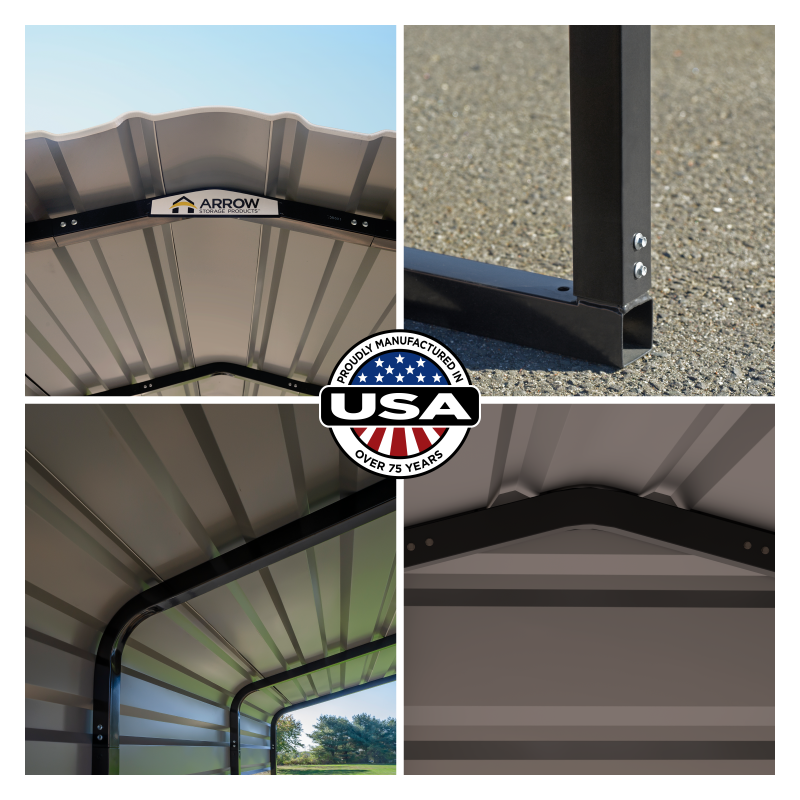

• Featuring a 2 in. square tube powder-coated steel frame, which provides stability and strength to the unit
• Built for easier, faster assembly: its unique design features a slip-fit frame connection with pilot holes and self-drilling screws for assembly that's faster, more convenient right out of the box
• Rounded roof eaves and 12 in. overhang at the roof gables offer additional protection from the elements
• A heavy-duty 29-gauge galvanized steel sidewall matches the roof and can be attached to the Carport to provide extra protection from the elements
• The roof and sidewall panels come in an attractive Eggshell finish
• Manufactured in the United States using globally sourced materials
• Comes with a 10-year warranty
• Snow load is given as reference only and assume a securely anchored frame according to local building codes and ordinances. These have been calculated using combined snow load provisions in accordance with ASCE 7-05.

SPECIFICATIONS

Color: Eggshell
Cover Color: Eggshell
Frame Color: Black
Frame Material: Steel
Building Shape: Peak
Shape Of Tube: Square
Foundation Width (In): 156
Foundation Length (In): 252
Door Width Bottom (In): 142
Door Height (In): 106.75
Wall Height (In): 108.75
Assembled Exterior Dimensions Depth (In): 237
Assembled Exterior Dimensions Height (In): 126.75
Assembled Exterior Dimensions Width (In): 146
Total Storage Volume (Cu. Ft.): 2274
Total Storage Area (Sq/Ft): 234
Snow Load Rating (Psf): 35
Wind Load Rating (Mph): 65
Item Gross Weight (Lbs.): 1084
No. Of Boxes: 10
