ShelterLogic 28x20x16 Peak Style Shelter Kit - Green (86044)

ShelterLogic 28x20x16 Peak Style Shelter Kit - Green (86044)

The ShelterLogic 28 ft. x 20 ft. x 16 ft. Garage has a solid steel frame that is coated with a DuPont™ thermo-set baked-on powder finish for great rust and corrosion resistance. Supplied with slip-fit connectors, swedged tubing, and bolt hardware at its connection points, the garage has a woven polyethylene cover that is UV treated inside and out for resistance to the elements. The garage features ShelterLock stabilizer blocks at every rib connection to help add strength and stability to the frame.

Features :

• All-steel frame with  DuPont thermoset baked on powder-coated finish resists rust and corrosion

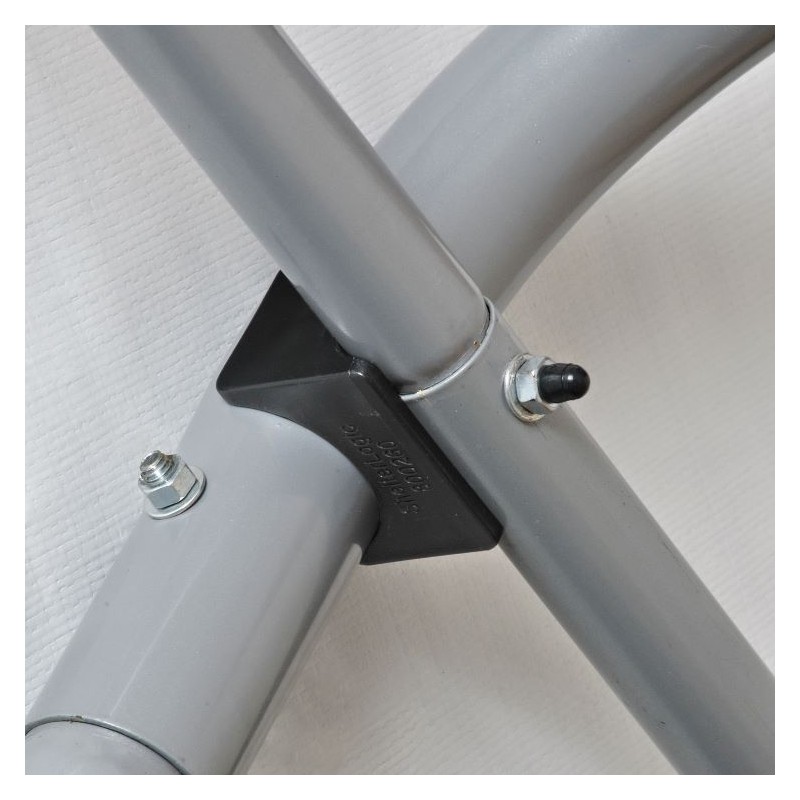

• Our patent-pending ShelterLock stabilizers at every rib connection add rock-solid strength and stability to frame

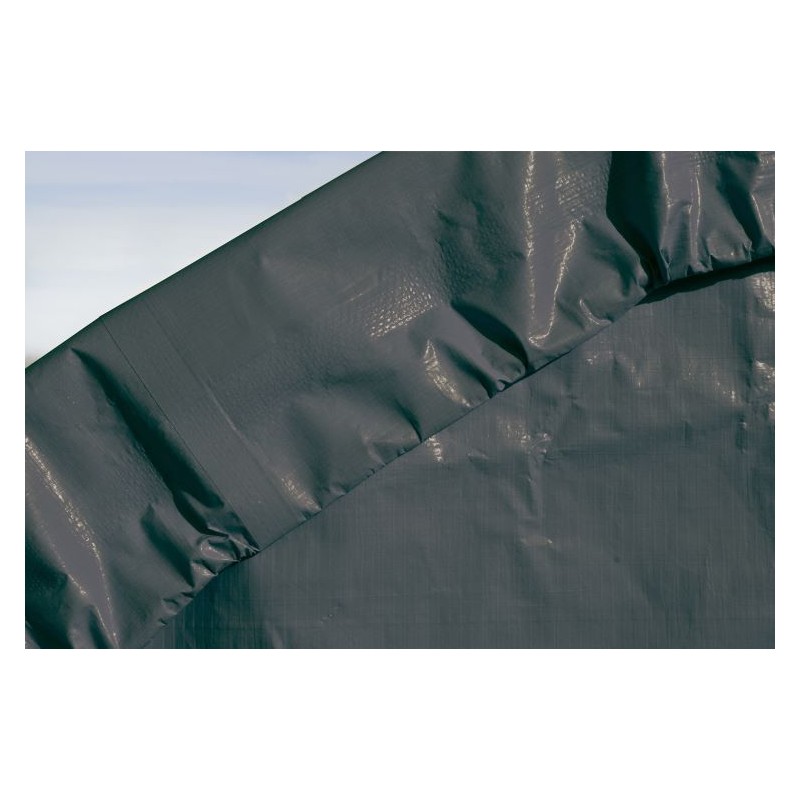

• Rip-Stop Tough advanced engineered polyethylene fabric cover, doors, and end panels triple layer 9 0z per square meter woven fabric is UV treated inside outside and in between. Heat-welded seams not stitched,100% Waterproof
• Bolt-together hardware at every connection point ensures maximum strength and durability
• Ratchet Tite Tension System and Easy-Glide Sliding Cross Rails keep the cover smooth and taut
• Universal steel foot plates for an easy and solid connection to ground anchors, cement or pony walls

Specifications

Color: Green
Frame Material: Steel
Product Fabric (Pe-Pvc-Polyester): Pe
Building Shape: Peak
Shape Of Tube: Round
Rib Tubing Diameter Edge To Edge (In): 2.36
Door Type: 2 Triple Zippered Doors Front And Rear
Door / Entrance Height (In): 147
Door / Entrance Width Bottom (In): 280
Door / Entrance Height (In): 105
Door Opening Width Top (In): 280

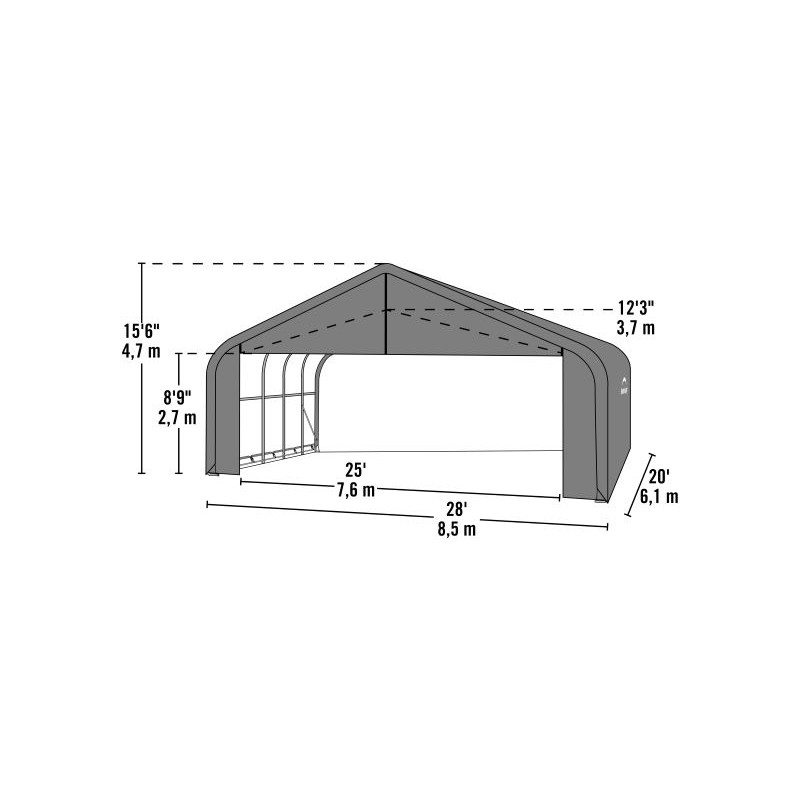

Gable Height (In): 106.72
Wall Height (In): 82.57
Assembled Exterior Dimensions Depth (In): 239.86
Assembled Exterior Dimensions Height (In): 189.29
Assembled Exterior Dimensions Width (In): 339.49
Total Storage Volume (Cu. Ft.): 6743.63
Total Storage Area (Sq/Ft): 565.49
Water-Resistant: Yes
Waterproof: Yes
Assembly Required: Yes
Item Net Weight - Assembled (Lbs.): 1256
