Lifetime Snow Load Kit for 8 ft Shed (60045)

Lifetime Snow Load Kit for 8 ft Shed (60045)

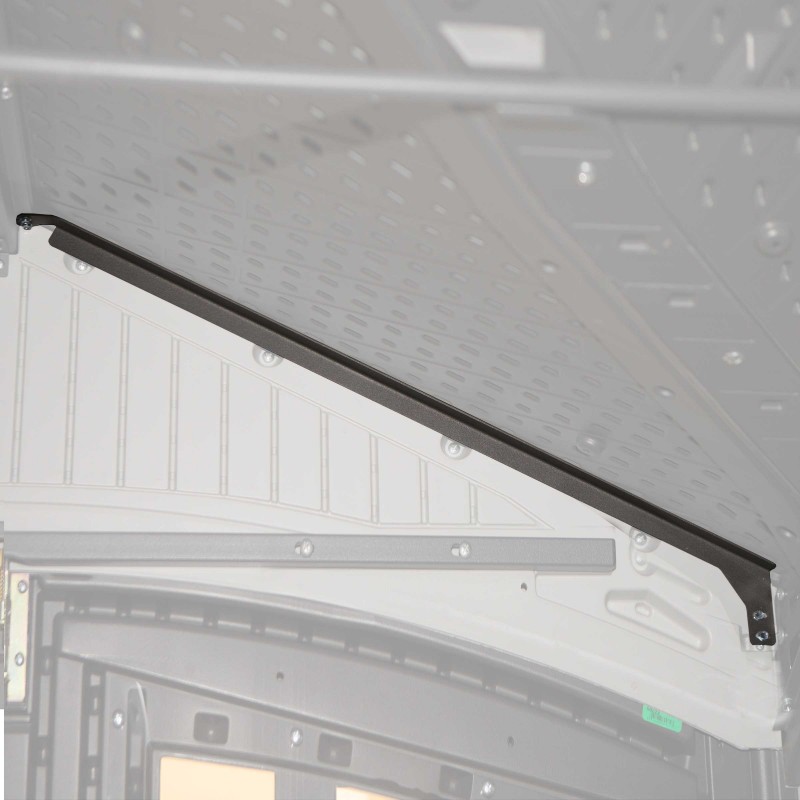

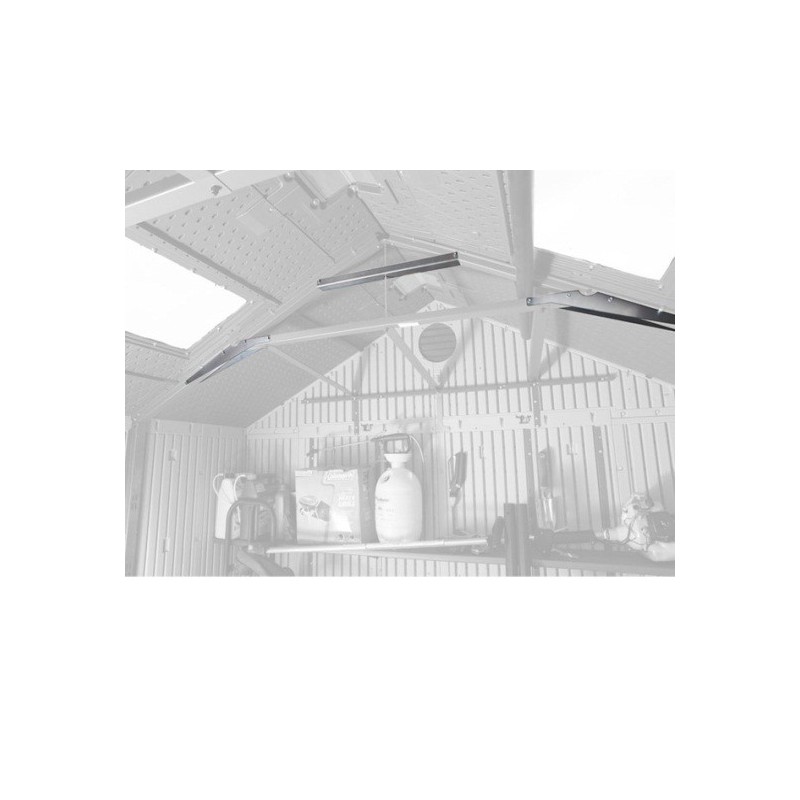

Protect your storage shed investment. If you live in an area that receives an excessive amount of snowfall in the winter, you'll appreciate the option of installing a Snow Load Kit in your 8 ft Lifetime storage shed. THIS SNOWLOAD KIT REINFORCES ONE TRUSS with large truss gussets which attach to the front and back of the main truss, as well as a short brace to go above the main truss. This increases the snow load capacity of your shed from 23 psf to 30 psf above that truss. (That's 2400 lbs total roof load capacity for an 8 x 10 ft shed).

Note: The following are the amount of trusses in each of our 8 ft shed models so that you will know how many snow load kits you need for your shed: 8 x 5 ft -- 1 truss, 8 x 7.5 -- 2 trusses, 8 x 10 -- 3 trusses, 8 x 12.5 -- 4 trusses, 8 x 15--5 trusses *Not compatible with 8ft models #60085,#60077, or any of our Garden Style sheds (with door in the long side of the shed)

For more information about assembly, read the Owner's Manual Sample.

Kit Includes

4 truss gussets
1 short brace to go above the main truss
Installation hardware

Call Outs

Reinforces one roof truss (refer to product description to see how many kits are required for each shed model)
Increases snow load capacity above the truss from 23 psf to 30 psf

Specification:

Model Number: 60045
Quantity: Reinforcements for 1 truss
Includes: 4 steel support gussets and 1 short truss brace to reinforce one roof truss
Material of Constructions: Steel
Compatibility: For 8 ft. wide Lifetime storage sheds (Not compatible with Lifetime 8 ft Garden sheds)
Maximum Snow Load Capacity: 30 psf
Warranty: 10 yr. limited warranty
