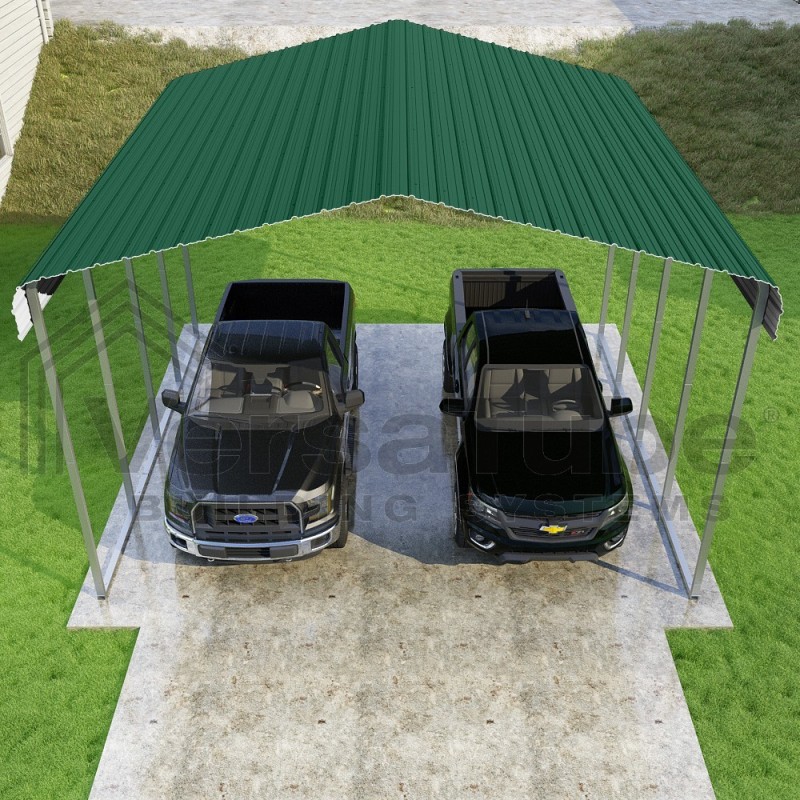

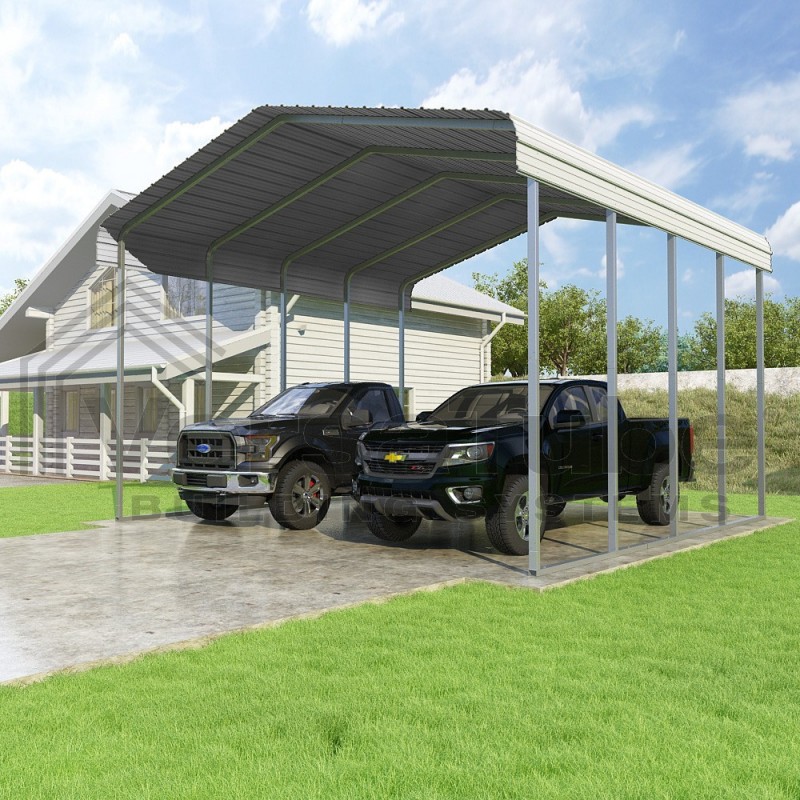

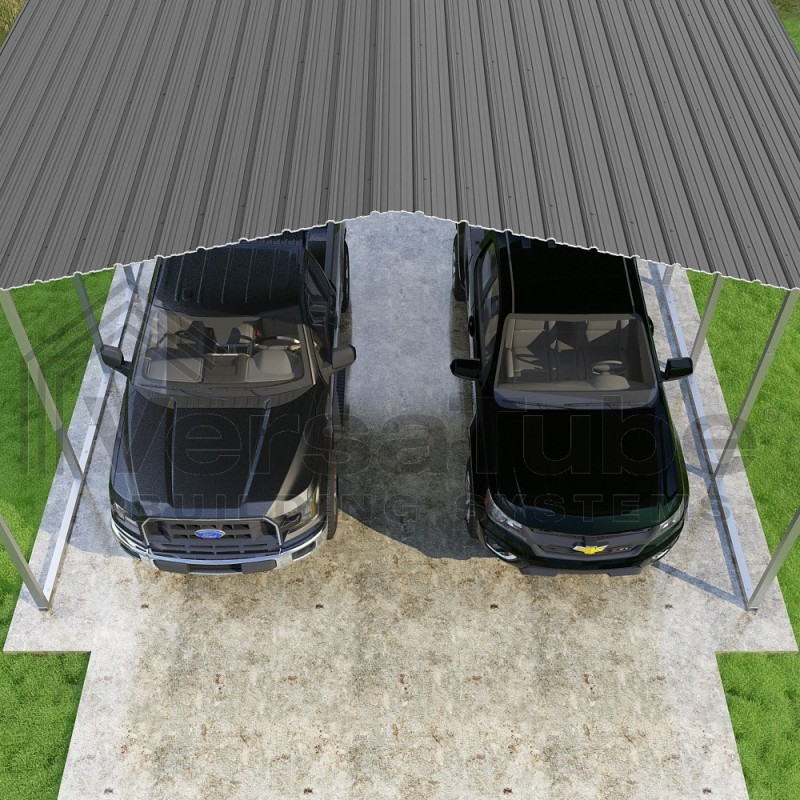

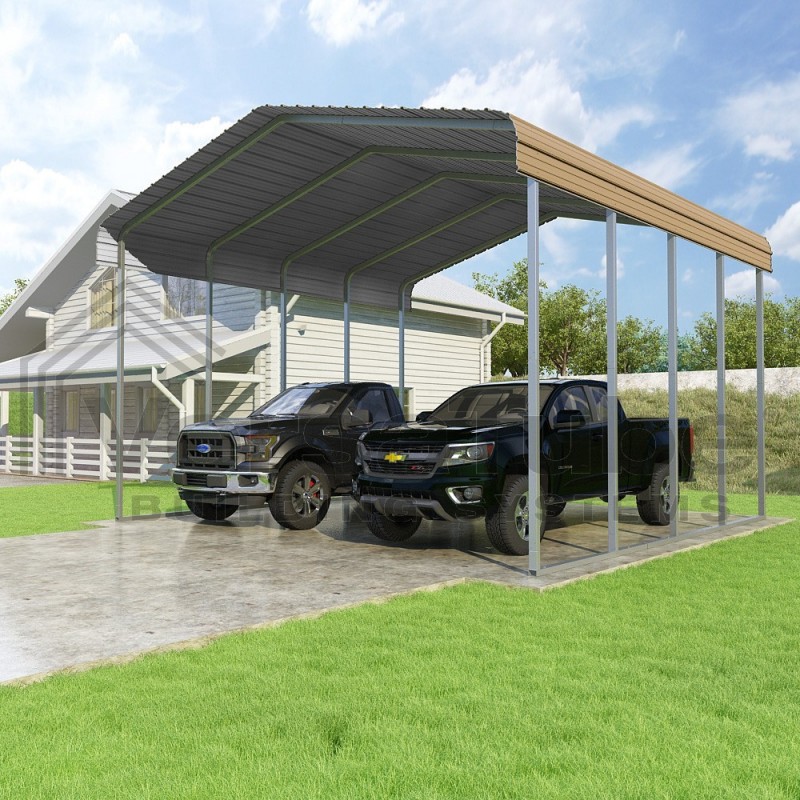

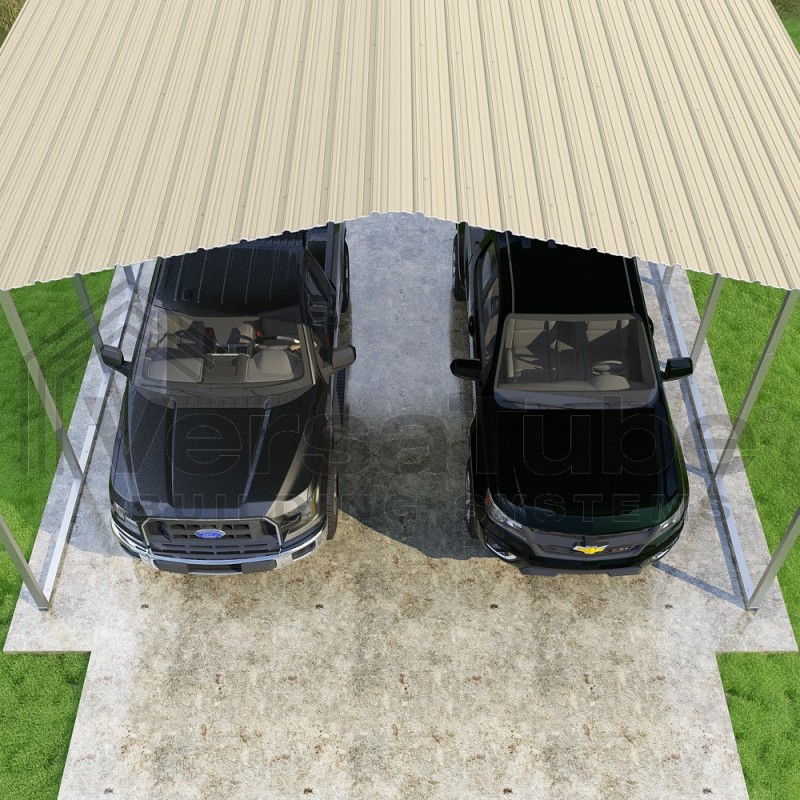

VersaTube 20x20x12 Classic Steel Carport Kit (CM020200120)

VersaTube 20x20x12 Classic Steel Carport Kit (CM020200120)

The Classic design has been the traditional mainstay of carport manufacturers and retailers for many years. And with the VersaTube Slip-Fit frame system, you can get your carport kit with roof assembled in a single afternoon using common tools.

Structure Dimensions:
Erection Size: 20'W x 20'L x 12'H
Roof Pitch: 3:12
Sheet Metal Coverage: Roof coverage is 19'10" with a front and back overhang of 11"
Side Wall Height: 12'
Peak Height: 14'6"
Ground-To-Truss Brace Clearance: Approx. 12'
Special Note on Frame Length: Actual frame length is 18' long with 4.5' on central truss spacing
On Center Spacing: 4.5'
Steel Frame: 2"x 3" 14 & 15 gauge tubing made of the highest quality domestic galvanized steel
Sheet Metal Panels: 16
Sheet Metal Panel Size: 10'
Sheet Metal Gauge: 29 gauge

Engineering Details

Shipping Dimensions:
Pallet Size: 40"W x 120"L x 16"H
Total Weight: 1060.45 lbs

Warranty Details:
Frame Warranty: 20 year limited + product pledge
Sheet Metal Warranty: 20 year paint finish

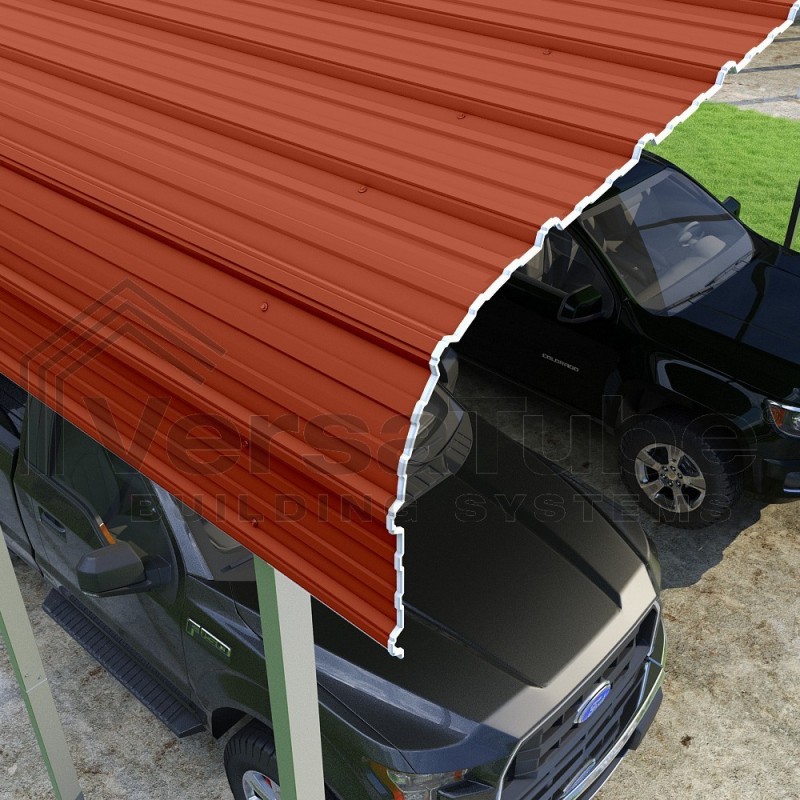

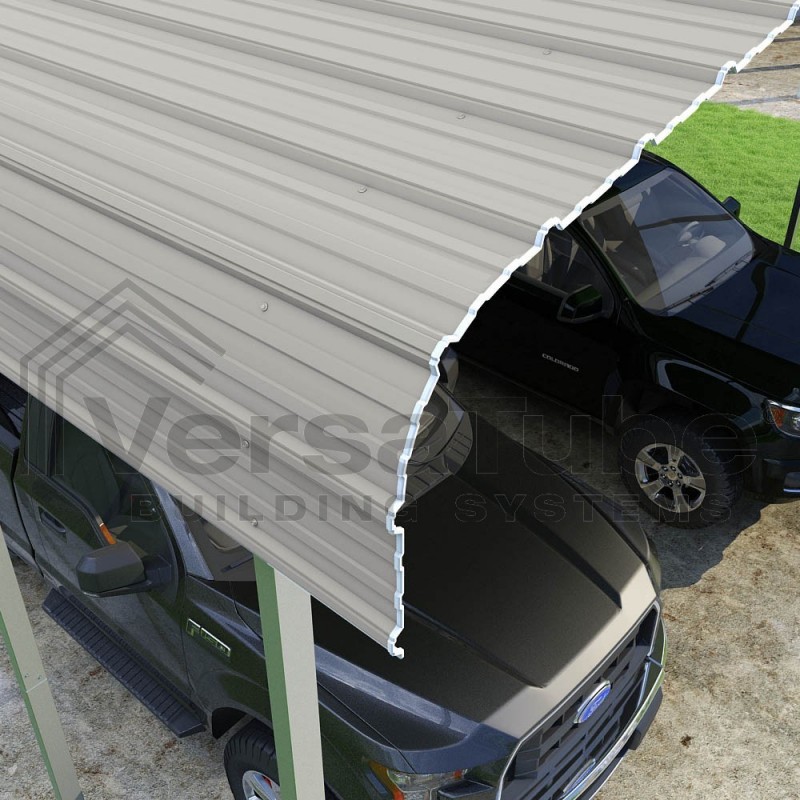

Classic Series DIY carport kit features horizontal application of sheet metal panels with the extra protection of rounded eaves.

Select From 8 Colors!
